Fig. 4

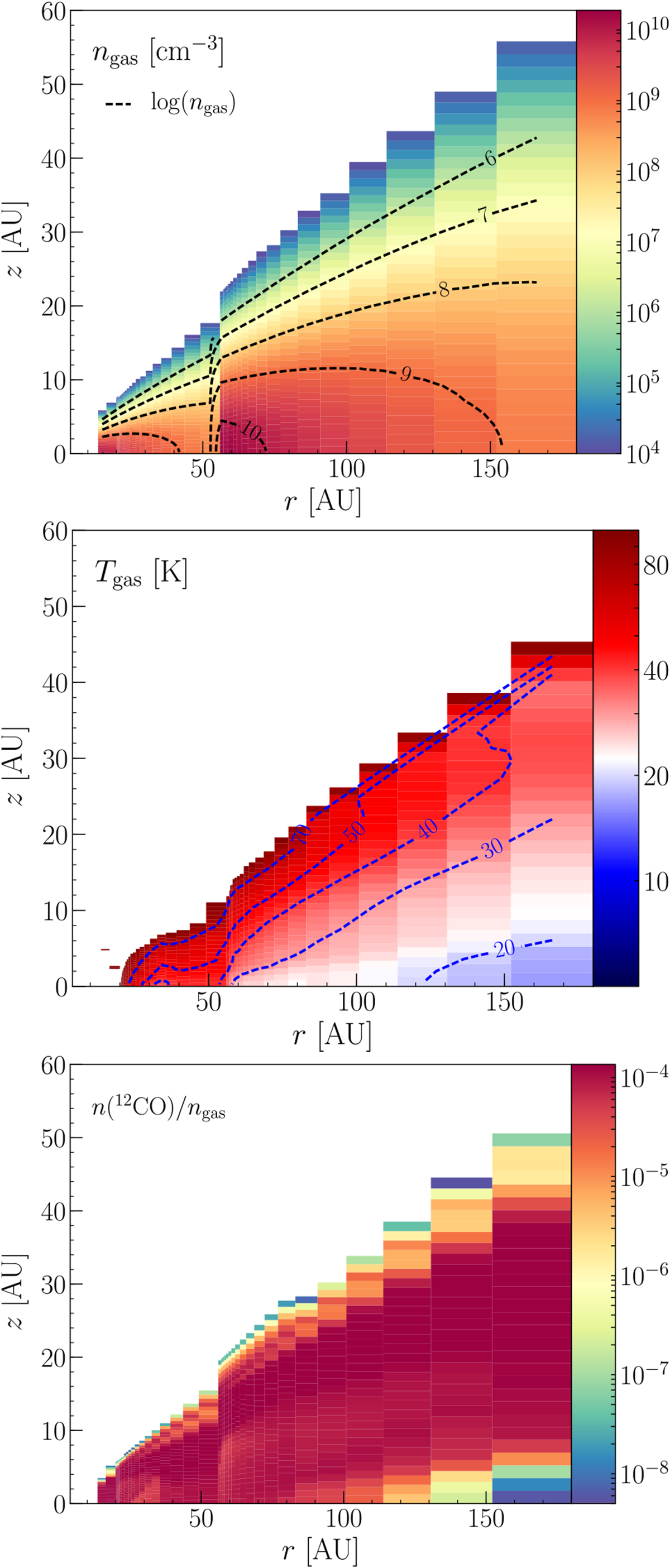

Two-dimensional physical structure of the HD 169142 disk from the optimized DALI model ( Appendix A). Top: gas density structure. The gas density contours (dashed black) are shown as log(ngas). Middle: gas temperature structure below 100 K. Temperature contours are shown in dashed blue. Bottom: CO abundance structure with respect to H2.
