Fig. 7

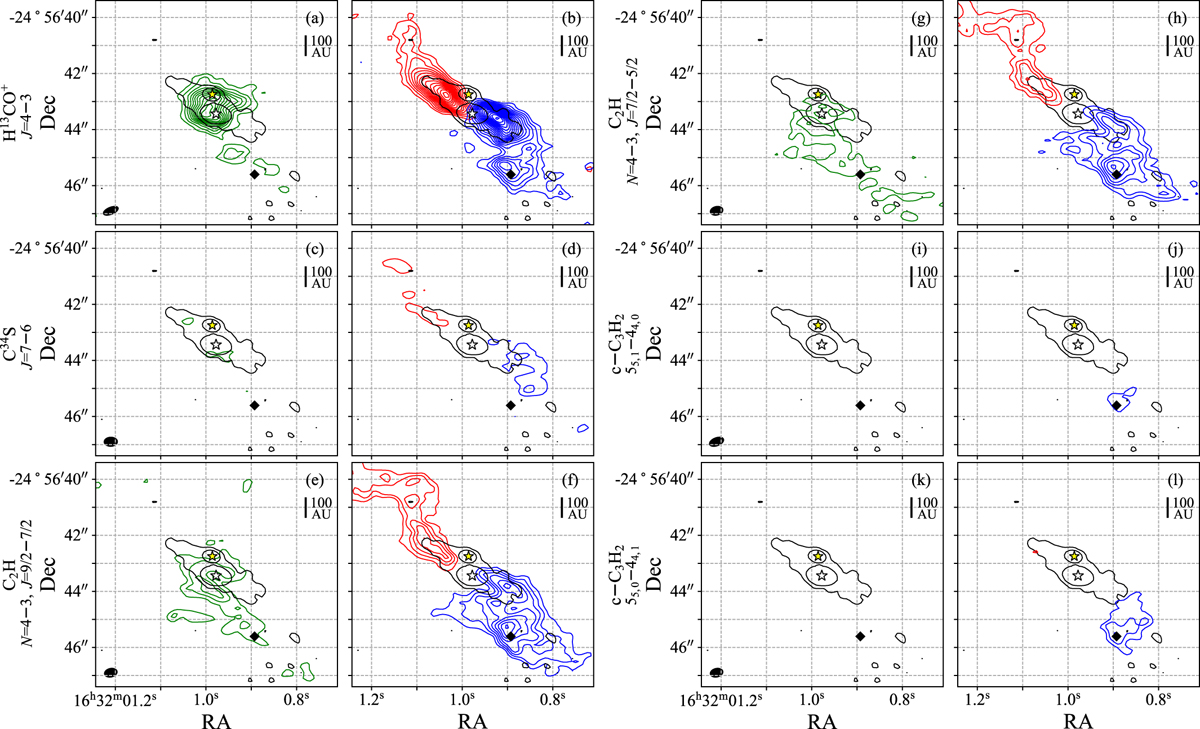

Contour maps for H13CO+, C34S, both C2H doublets andboth c−C3H2 transitions, starting at 5σ and following a step of 4σ ( and are 6 mJy beam−1 km s−1, while and are 9 mJy beam−1 km s−1). Green contours represent low-velocity emission, from −1 to 1 km s−1. Blue and redcontours indicate intermediate velocities, from −1 to −5 km s−1 and from 1 to 5 km s−1, respectively. The black contours represent the continuum emission of Fig. 1 for a value of 4 and 15σ (σ = 0.4 mJy beam−1). The yellow and white stars indicate the position of Oph-IRS67A and B, respectively. The black diamond denotes the location of the high-density region. The synthesised beam for each species is represented by a black filled ellipse.
