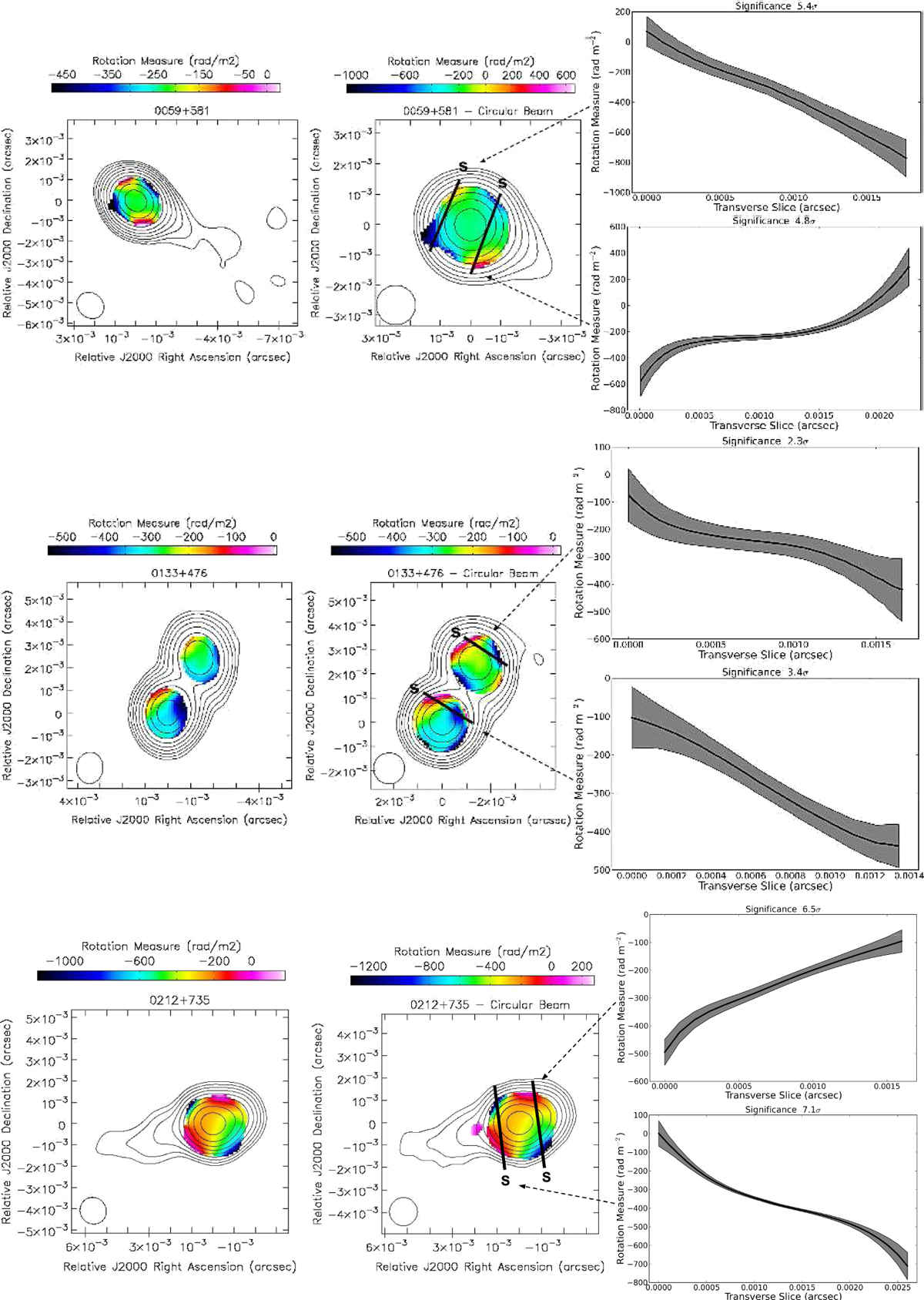

Fig. 1


8.1-GHz intensity maps made with the nominal, naturally weighted elliptical beams with the corresponding RM distributions superposed (left panel), the corresponding intensity and RM maps made using equal-area circular beams (middle panel), and slices taken along the lines drawn across the RM distributions in the middle panels (right panel). These mapsare based on the 8.1–15.2 GHz data of Hovatta et al. (2012); information about the map peaks, bottom contours, and the beam sizes is given in Table 2. Shown here are results for 0059 + 581 (top panel), 0133 + 476 (middle panel) and 0212 + 735 (bottom panel).
