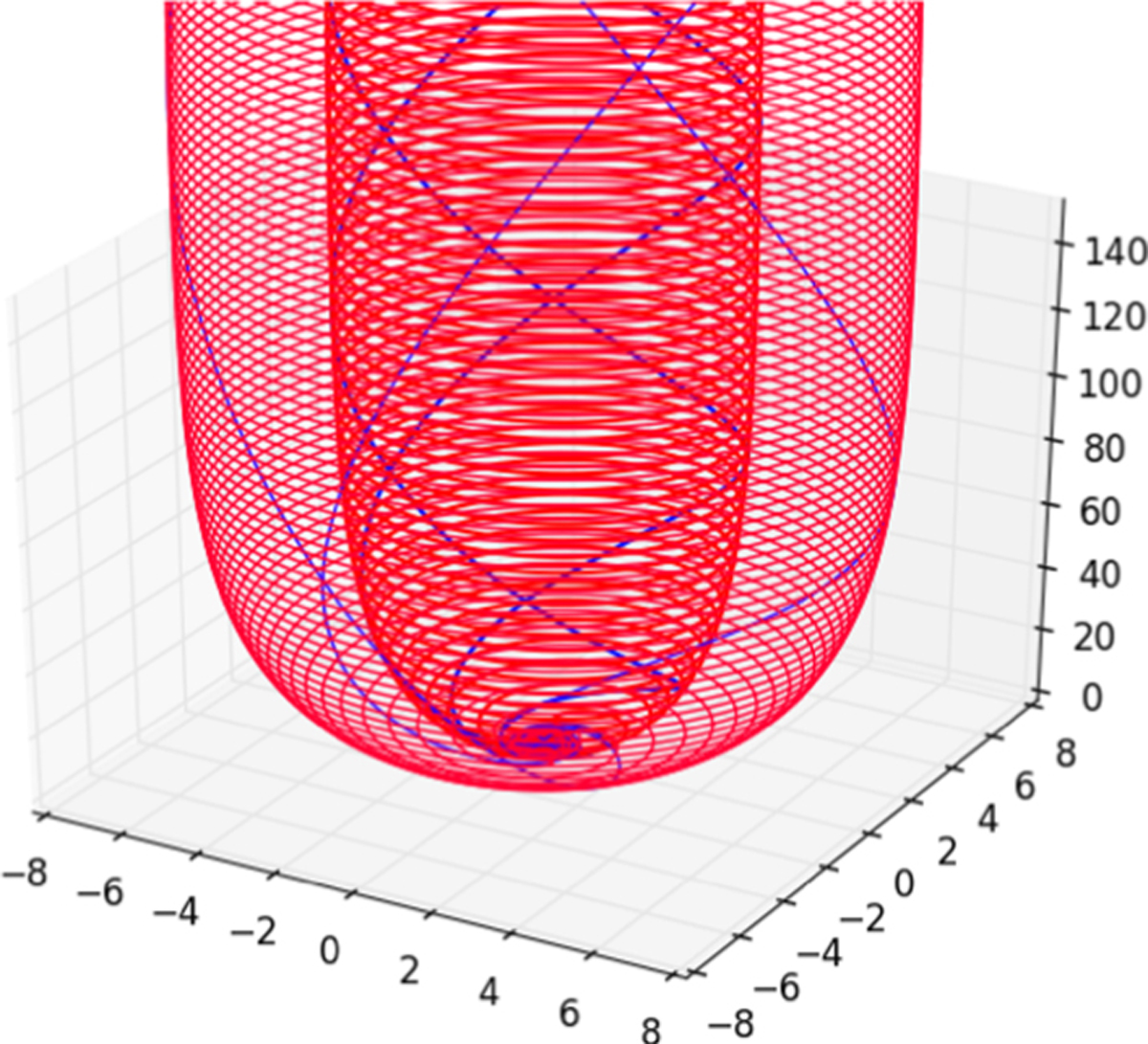

Fig. 4
Three-dimensional (3D) representation of the field lines and streamlines for the thermally collimated solution K1 at the base of the jet and for two flux tubes. The blue lines correspond to streamlines, the red lines to magnetic field lines. The length is in units of the Alfvén radius, that is, ten times the Schwarzschild radius.
