Fig. B.2

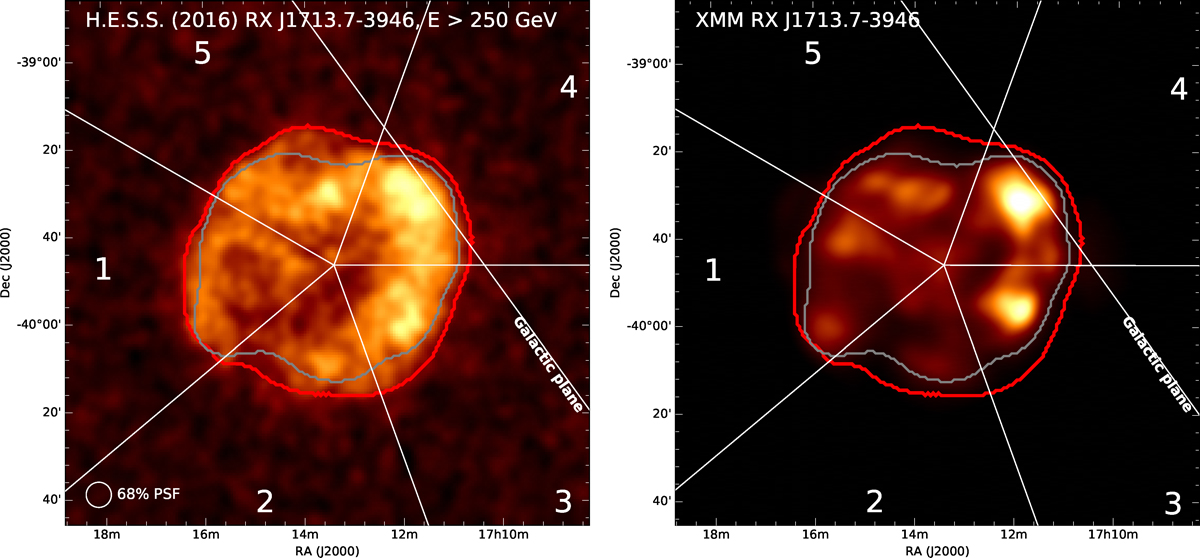

Results of the border-finder algorithm. On the left, the H.E.S.S. gamma-ray excess image of RX J1713.7−3946 is shown with overlaid borders of the gamma-ray (red) and X-ray (grey) data detected by the border-finder algorithm described inChan & Vese (2001). The wedges in which the radial profiles in Sect. 3.2 are studied are also shown along with the Galactic plane. On the right, the same two borders are overlaid on the XMM-Newton X-ray image for comparison.
