Fig. 7

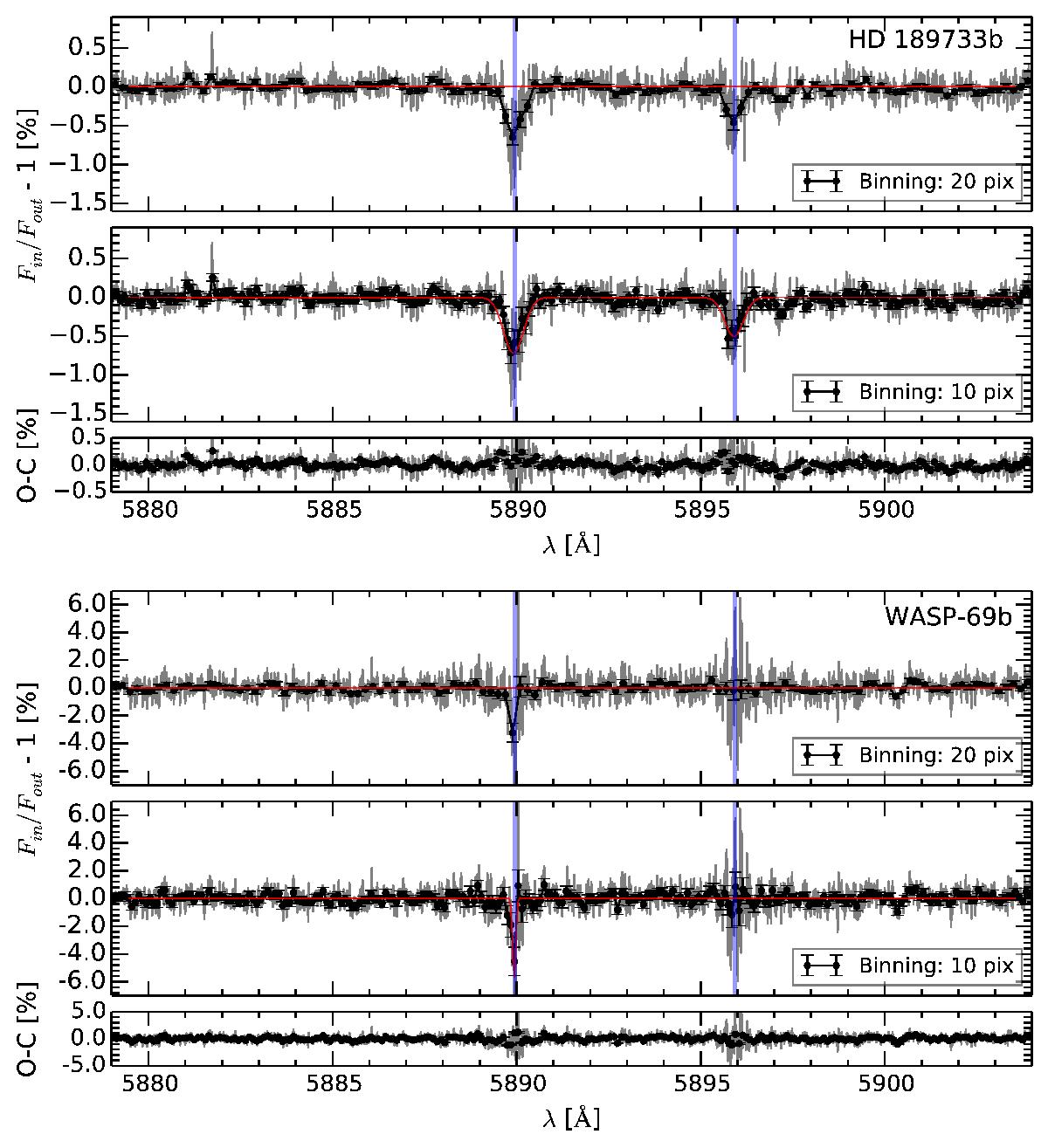

Transmission spectrum of HD 189733b (top panel) and WASP-69b (bottom panel) atmospheres in the region of the Na I D doublet. The atmospheric transmission spectrum is presented in light gray. We show the binned transmission spectrum with black dots; 20 pixels (top) and 10 pixels (middle). The Gaussian fit to each Na I D line is shown in red with its residuals in the bottom. The expected wavelength position of the Na I doublet lines, in the planetary reference frame, are indicated with blue vertical lines and the red horizontal line is used as reference around zero. A net blueshift of ~ 3 km s-1 (~ 0.04 Å) is observed in the Na I lines of HD 189733b, possibly due to a global error on the planetary RV shift as a result of the HARPS precision. No shift is observed for WASP-69b Na I lines with respect to the reference wavelength frame. The uncertainties of the relative flux are assumed to come from photon and readout noise propagated from the original spectra.

This figure is made of several images, please see below:
