Fig. 1

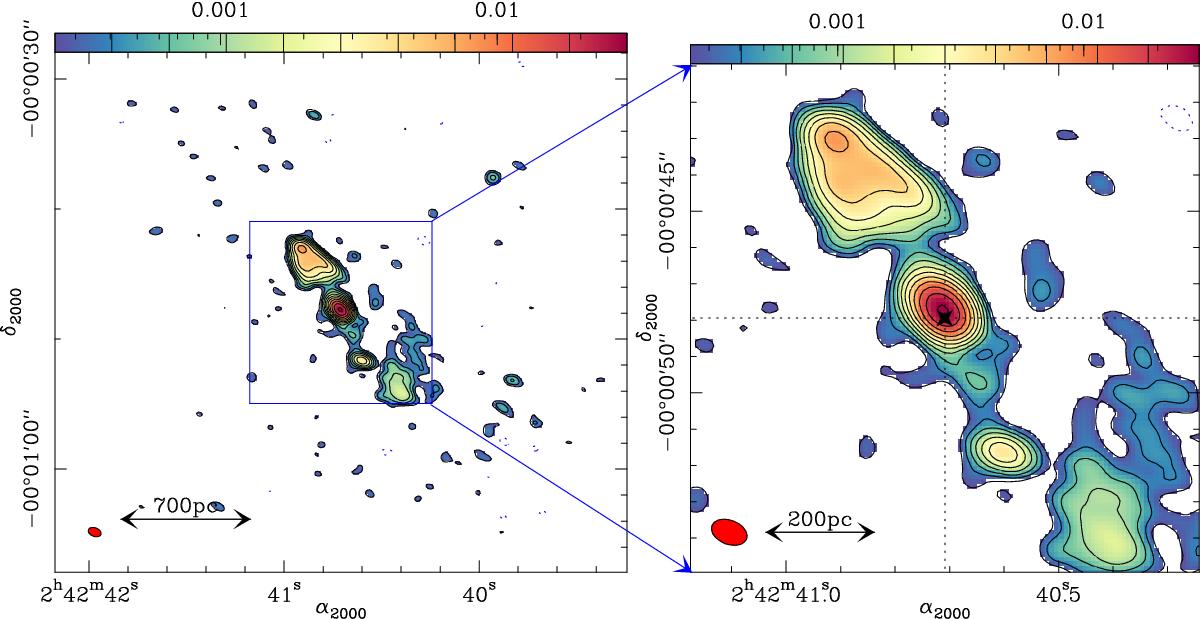

Left panel: continuum emission map of NGC 1068 obtained with ALMA at 86.3 GHz. The map is shown in color scale with contour levels starting at –3σ (dashed contour), and continuing with logarithmic spacing from 3σ to 350σ in steps of 0.21 dex, where 1σ = 80μJy beam-1. Right panel: same as left panel but zooming in on the inner region. The position of the AGN is highlighted by the star marker. The (red) filled ellipses at the bottom left corners in both panels represent the beam size of ALMA at 86.3 GHz ( at PA = 69°).
