Fig. 10

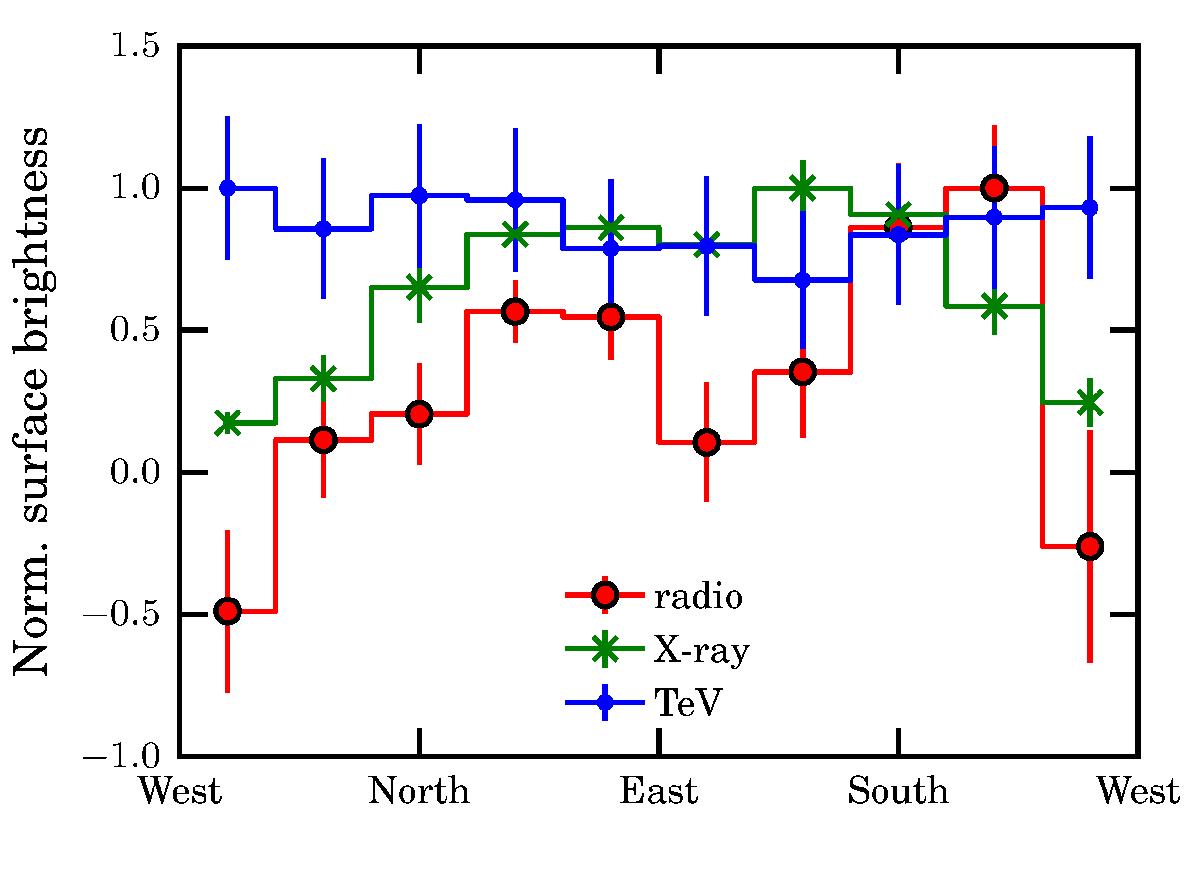

Shell azimuthal surface brightness profile in TeV, X-ray, and radio bands. The shell is assumed to be centred on the CCO and have radius from 0.18° to 0.24°. The radio and X-ray images were smoothed with the HESS psf to allow meaningful comparison. X-ray and radio emission are both suppressed towards the Galactic plane (i.e. western or spectral extraction regions 15, 19), whereas the TeV profile is consistent with being flat.
