Fig. 11

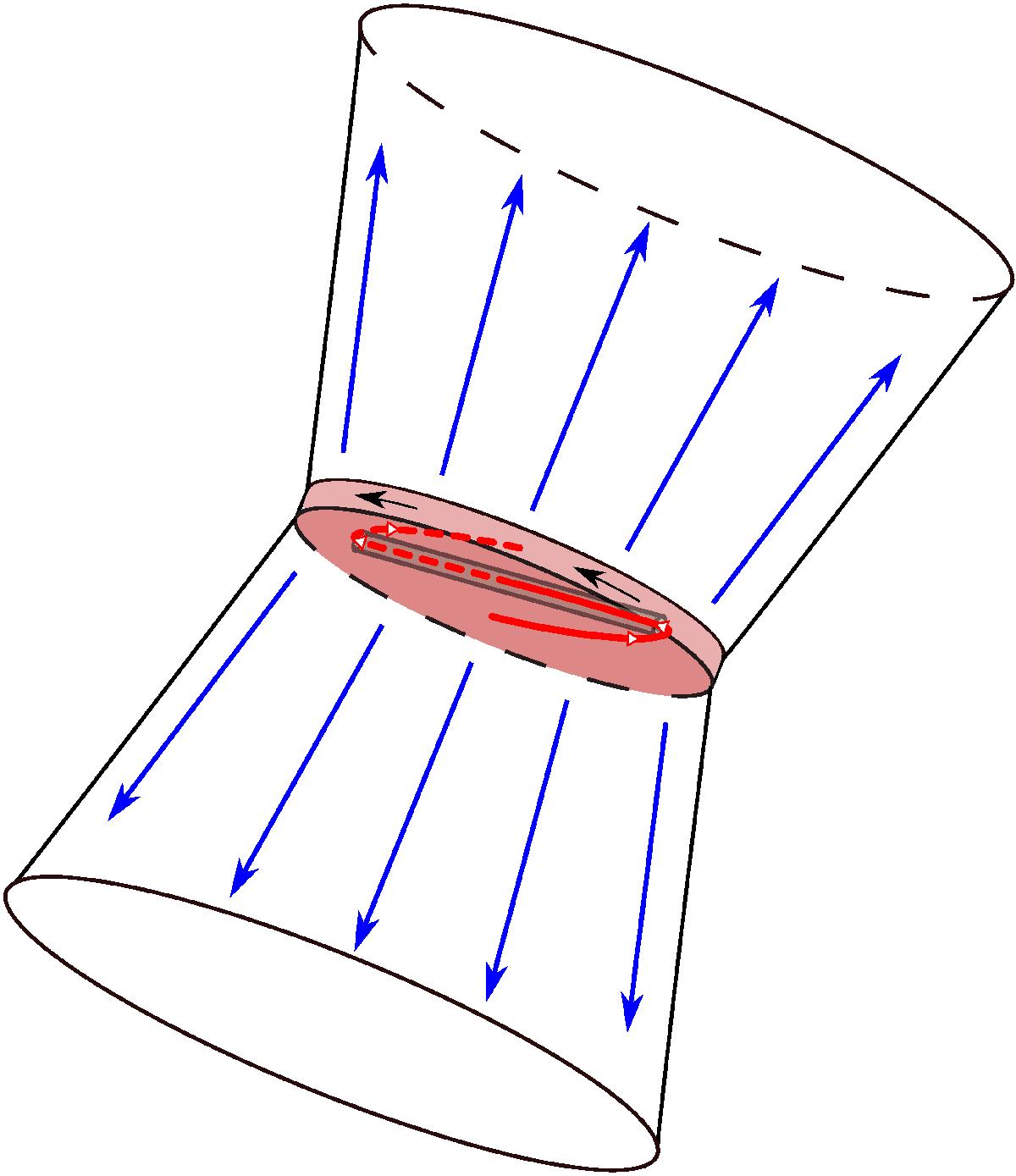

Sketch of the magnetic field morphology in M 82 showing our view of the galaxy. The grey cylinder represents the bar with the magnetic field as a red line. The black arrows on the disk show its rotation. The arrows on the red line show the direction of the magnetic field; the dashed part of the red line indicates that part of the magnetic field which is not observed. The direction of the outflow is shown with blue arrows.
