Fig. 13

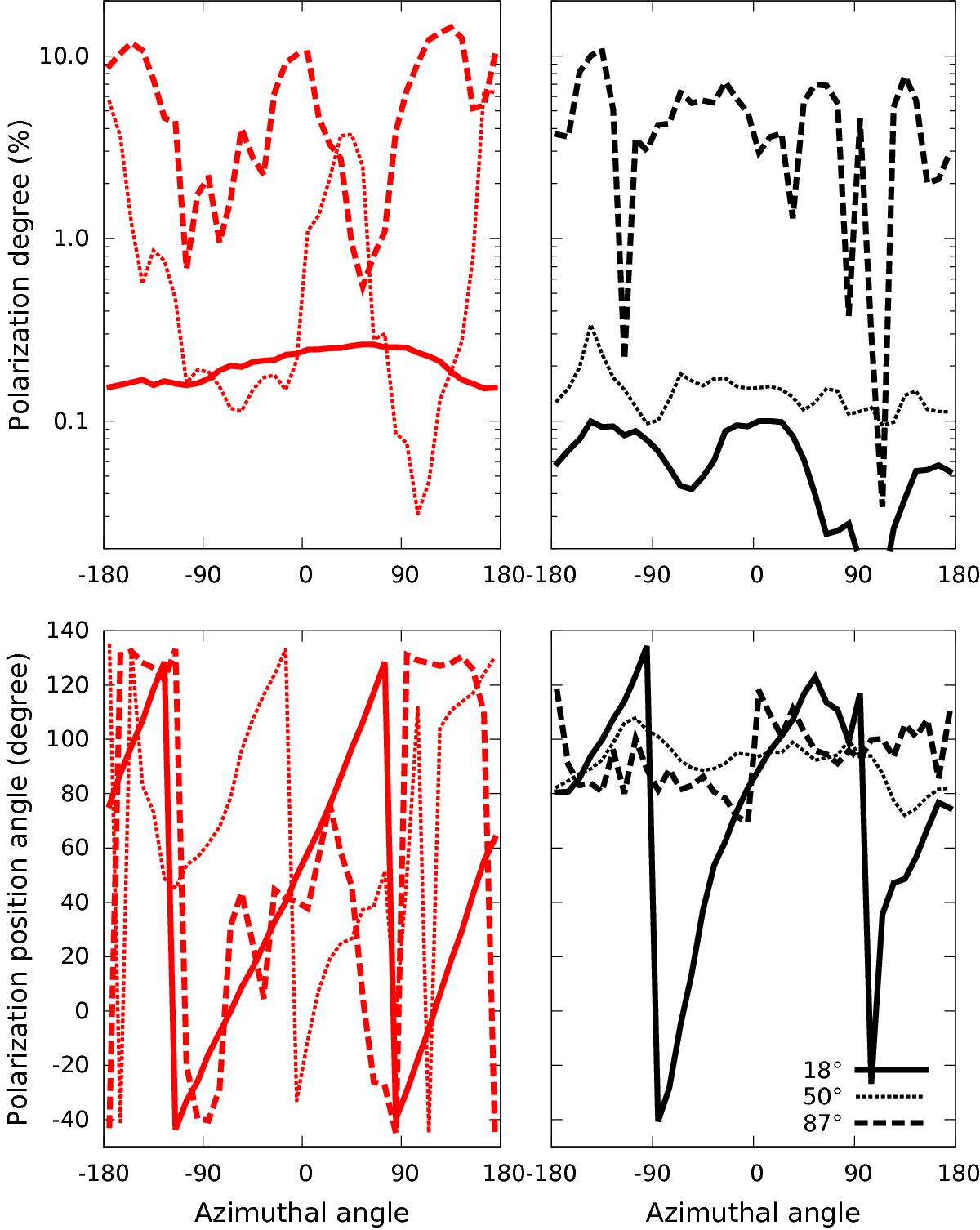

Left panels: optical polarization (5000 Å) from the warped dusty disk presented in Jud et al. (2017). For comparison, a warped torus created with the formulas presented in this paper using Rwarp = 0.5 pc and θwarp = 10° is shown (black, right panels). The parametrization of Jud’s disk is the same as in their paper and the model was clumpy in order to achieve a 22–23% volume-filling factor.
