Fig. 1

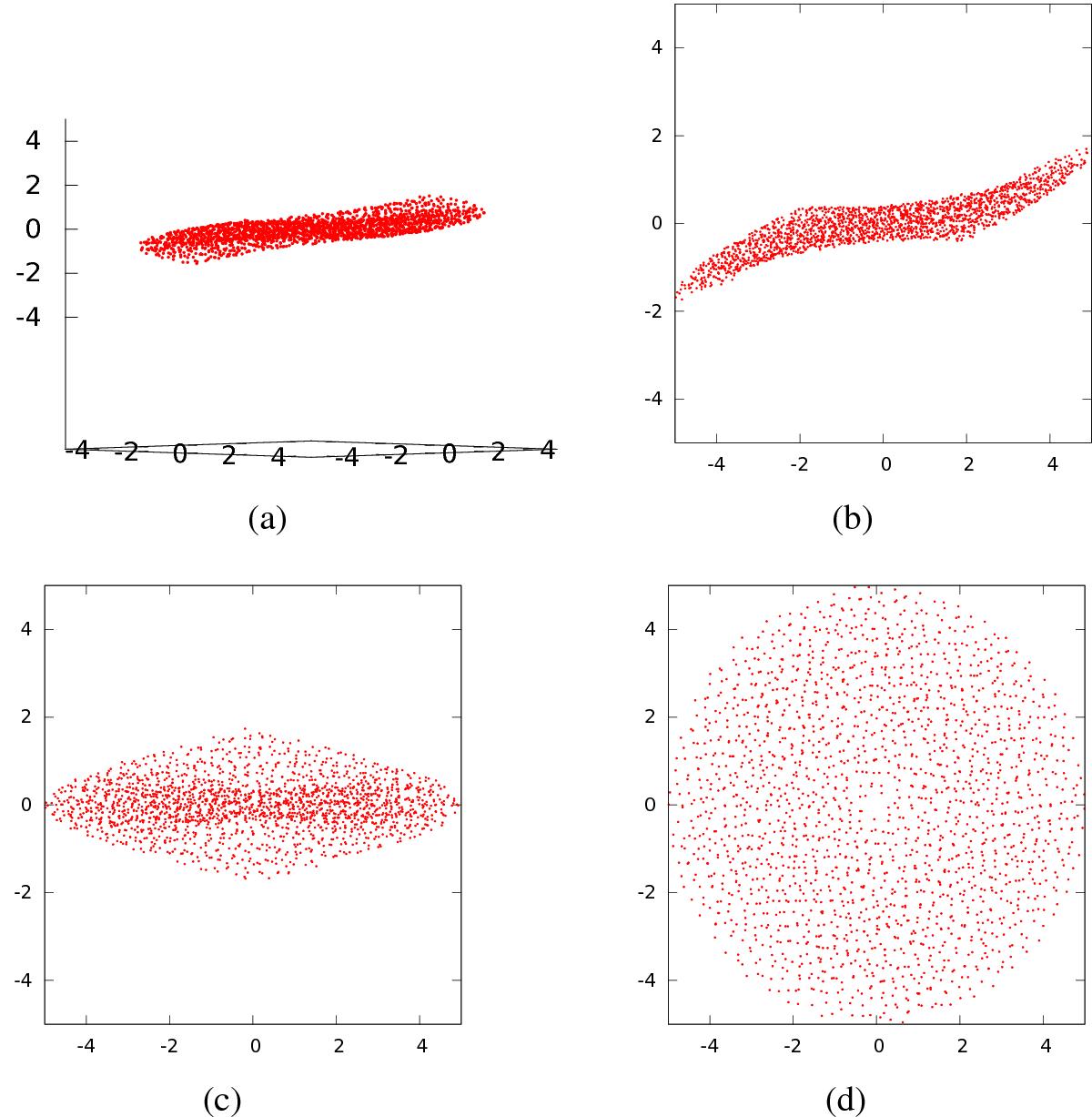

Representations of a clumpy warped dusty torus with Rwarp = 2 pc and θwarp = 30°. Axes are in parsecs. The top left panel is a three-dimensional view of the model; top right: projection onto the xz-plane (Seyfert-II view, azimuthal angle = –90°); bottom left: projection onto the yz-plane (Seyfert-II view, azimuthal angle = 0°); and bottom right: projection onto the xy-plane (Seyfert-I view).
