Fig. 4

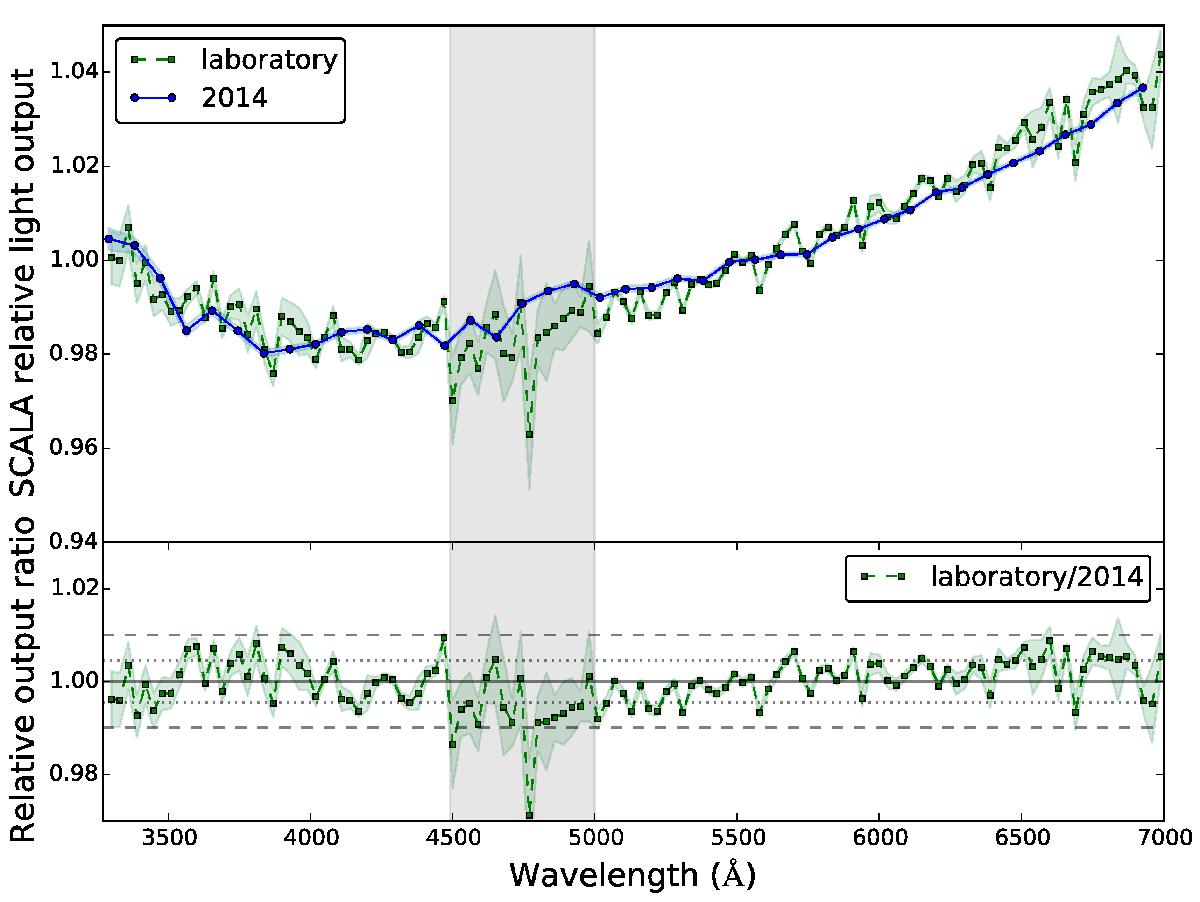

Top panel: quantity Es. In green is the wavelength dependence of the SCALA relative light output estimated from the laboratory measurements. In blue is that measured from the commissioning in May 2014. Both have been normalized with respect to their average to compare their color trend. Bottom panel: ratio between the laboratory measurement and the 2014 commissioning measurements. The dashed lines represent the ±1% range around the averaged ratio of 1.000 (full line). The dotted lines are the measured standard deviation of 0.4%. The vertical gray band delimits the region where weak emission lines of the Xe lamp are located (4500–5000 Å). The measurements have been performed with the Xe lamp and therefore they only go up to 7000 Å.
