Fig. 7

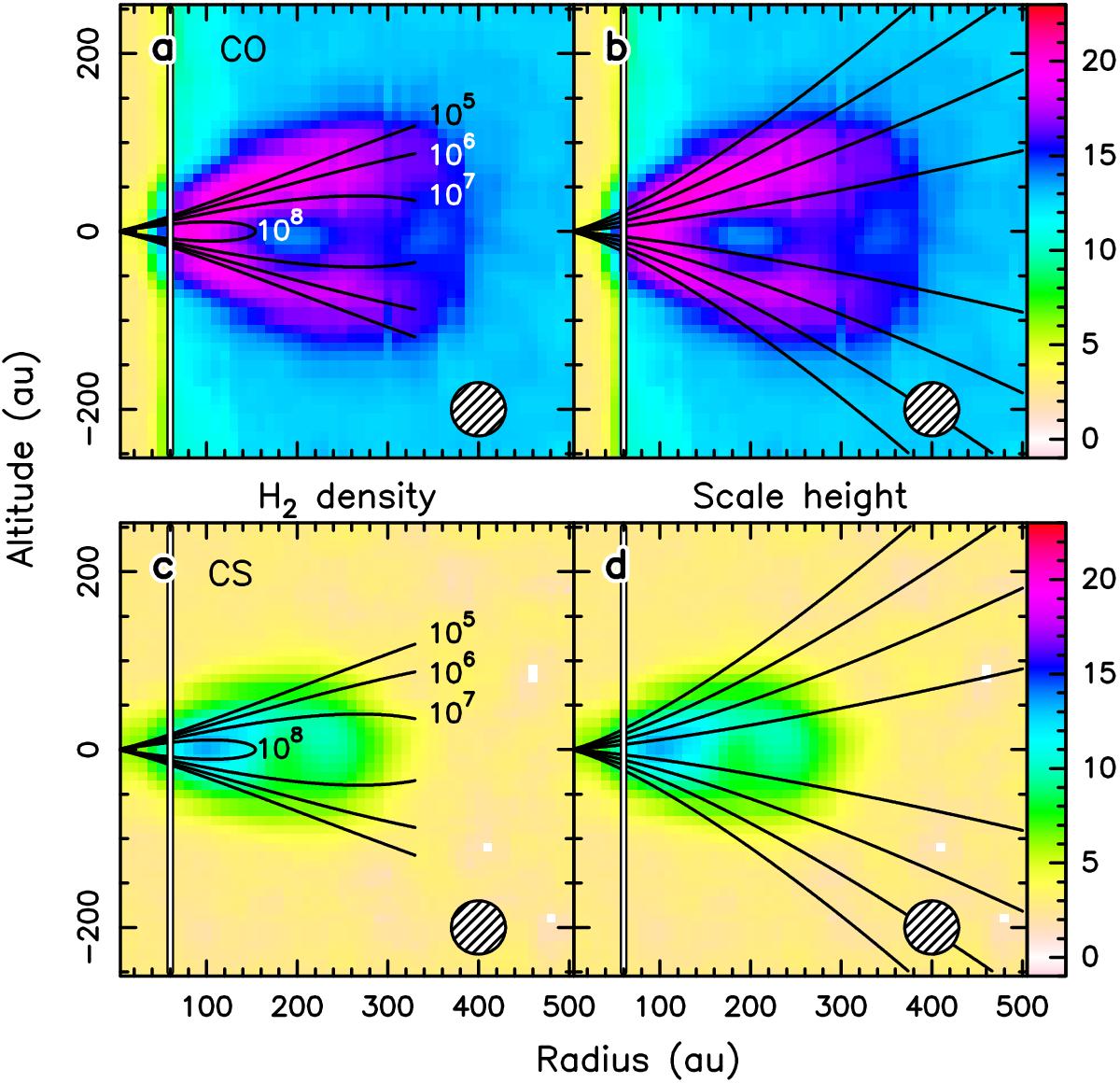

Superimposition of the CO and CS median TRD to a standard disk model. a) CO TRD (color) and the H2 volume density superimposed in labeled contours from 105 up to 108 cm-3; b) CO TRD with the scale height superimposed in black contours from 1 to 4 scale heights; panels c and d as panels a and b, but for CS. The model corresponds to the parameters given in Table 2.
