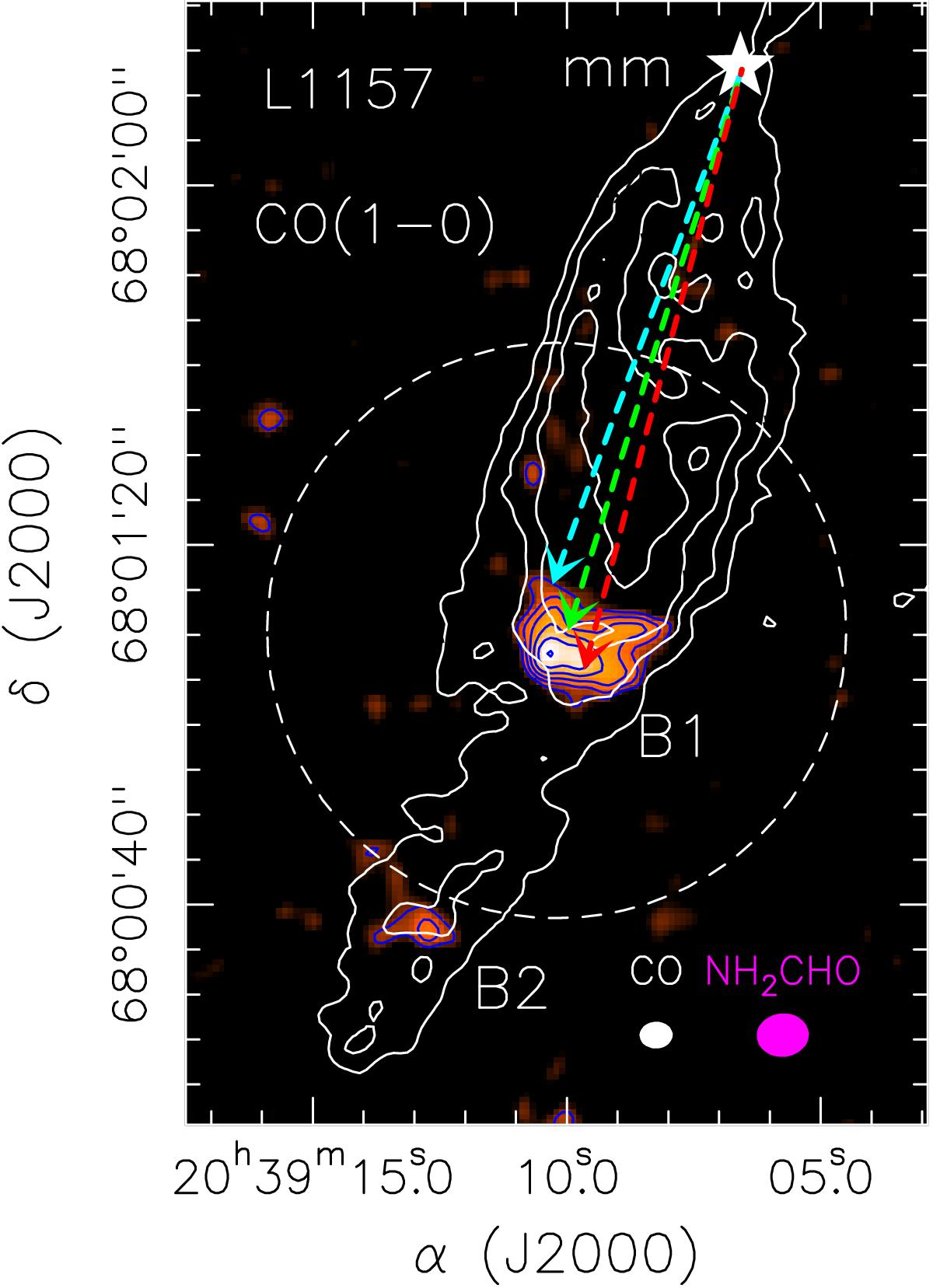

Fig. 1

Southern blue-shifted lobe L1157 in CO (1–0) (white contours; Gueth et al. 1996). The precessing jet ejected by the central object L1157-mm (white star) excavated two cavities, with apices B1 and B2, respectively. The maps are centred at , δ(J2000) = +68°01′10
5 (Δα = +25″ and Δδ = –63
5 from L1157-mm). The emission map of the NH2CHO (41,4–31,3) line (integrated over the velocity range –5 to +5 km s-1) is shown by the colour image. For the CO image, the first contour and step are 6σ (1σ = 0.5 Jy beam-1 km s-1) and 4σ, respectively. The first contour and step of the NH2CHO map correspond to 3σ (15 mJy beam-1 km s-1) and 1σ, respectively. The dashed circle indicates the primary beam of the NH2CHO image (64″). The magenta and white ellipses depict the synthesised beams of the NH2CHO (5
79 × 4
81, PA = –94°) and CO (3
65 × 2
96, PA = +88°) observations, respectively. The three dashed arrows indicate the directions (projected on the plane of the sky) of the episodic jet producing the shocks analysed in Sect. 3 and Fig. 2.
