Fig. 8

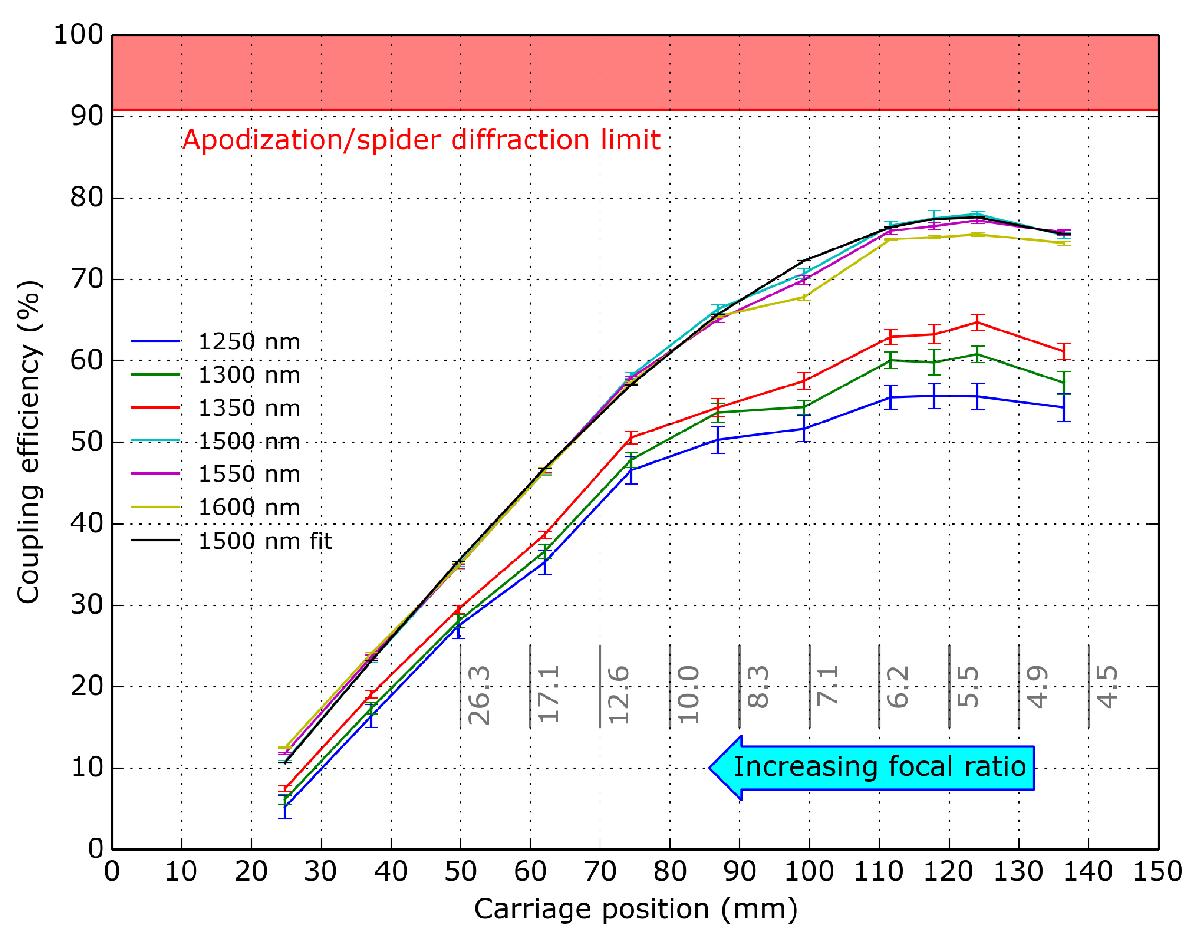

Coupling efficiency as a function of the fibre injection rig carriage position, which is related to the focal ratio. The estimated focal ratio for each position of the rig is indicated next to the vertical grid lines. This was calculated assuming that peak coupling occurred at f/ 5.3.
