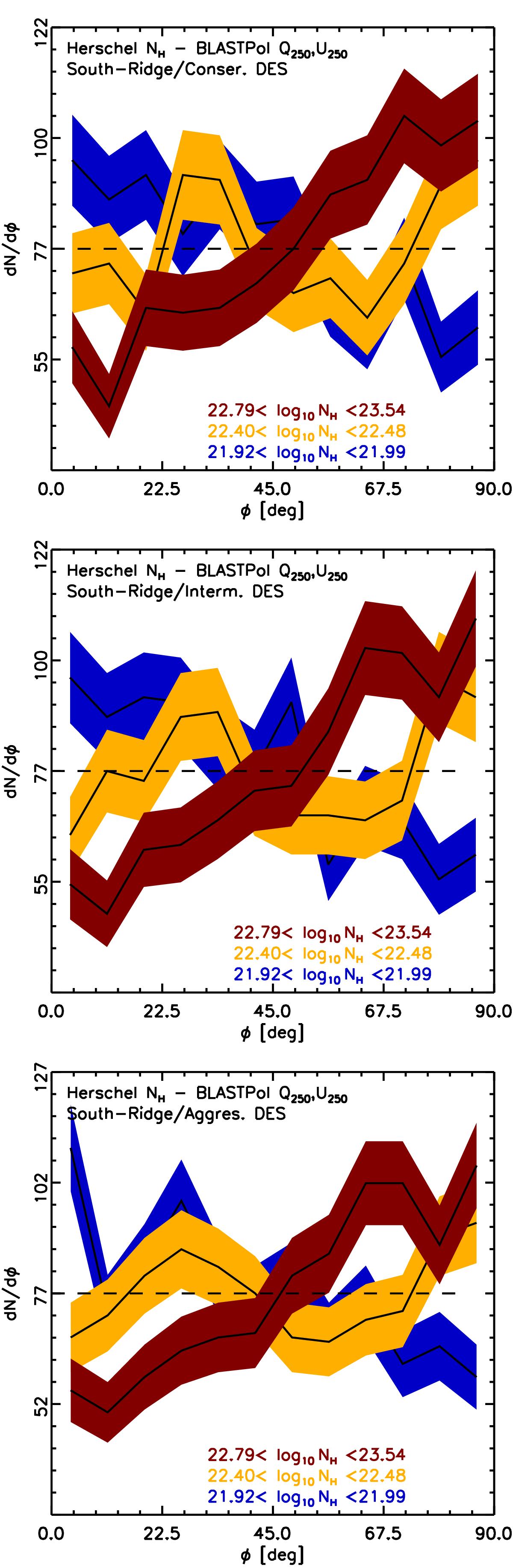

Fig. B.1


Histogram of the relative orientations (HRO) between the iso-NH contours and the magnetic field orientation inferred from the BLASTPol observations at 250 μm obtained with the three diffuse emission subtraction (DES) methods, namely aggressive, intermediate, and conservative, defined in Sect. 3.1. The figures present the HROs for the lowest bin, an intermediate bin, and the highest NH bin (blue, orange, and dark red, respectively). The bins have equal numbers of selected pixels within the NH ranges labelled. The horizontal dashed line corresponds to the average. The widths of the shaded areas for each histogram correspond to the 1σ uncertainties related to the histogram binning operation. Histograms peaking at 0deg would correspond to being predominantly aligned with iso-NH contours, while histograms peaking at 90deg would correspond to predominantly perpendicular to iso-NH contours.

This figure is made of several images, please see below:
