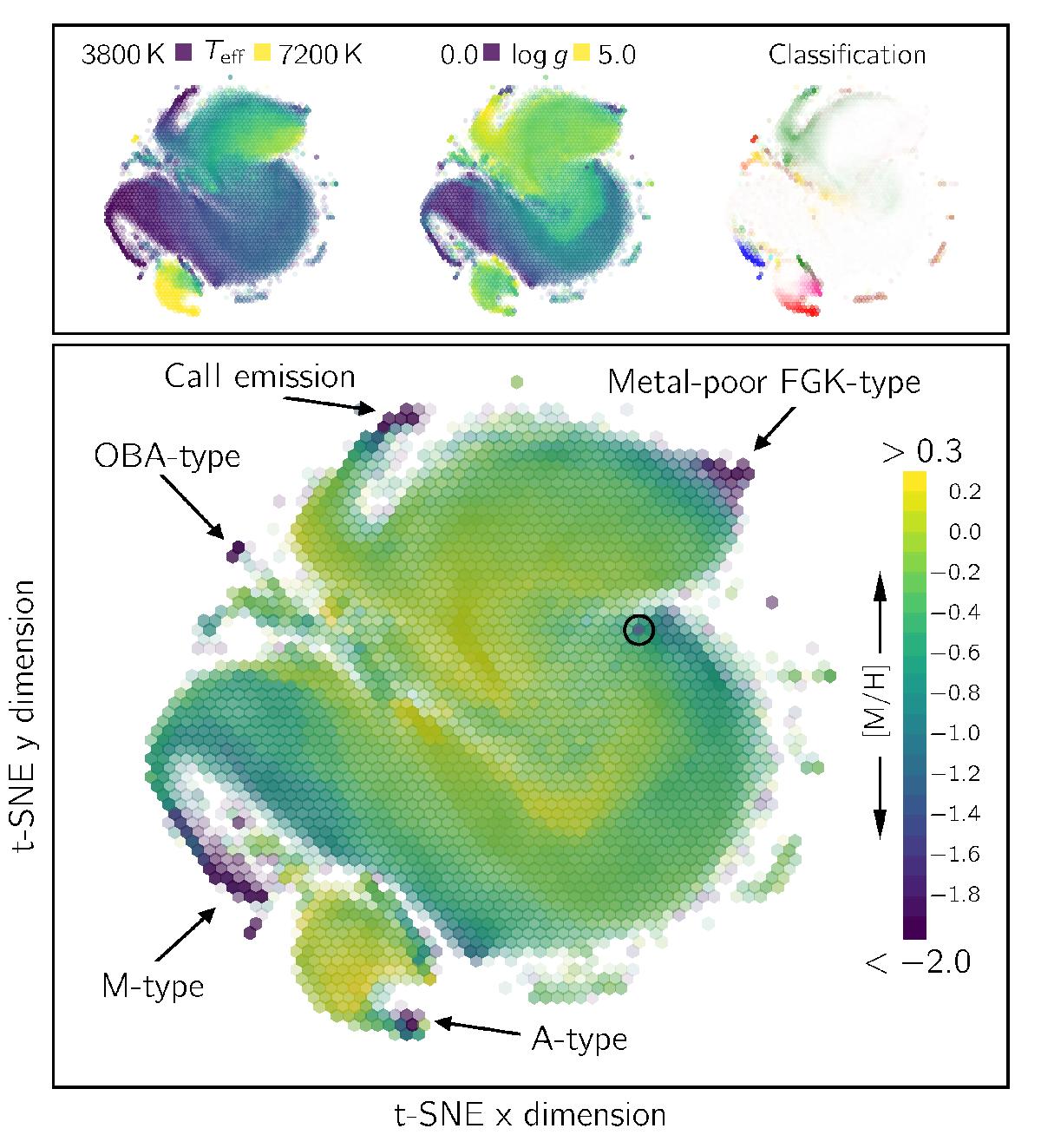

Fig. 2

Bottom diagram: t-SNE projection computed from all available RAVE spectra with S/N> 10. The individual points are binned into hexagons for easier visualization. The color scale encodes the median DR5 metallicity in each hexagon. The labels mark five groups for which the parameter estimation pipeline gives very low metallicities. The circled region also includes a few K-type metal-poor candidates that were included in the analysis. Top three diagrams: similar, but effective temperature, gravity and classification from Matijevič et al. (2012) are overplotted. The colors in the upper right diagram indicate different classes of peculiar spectra, while the white region contains normal single stars.
