Fig. A.1

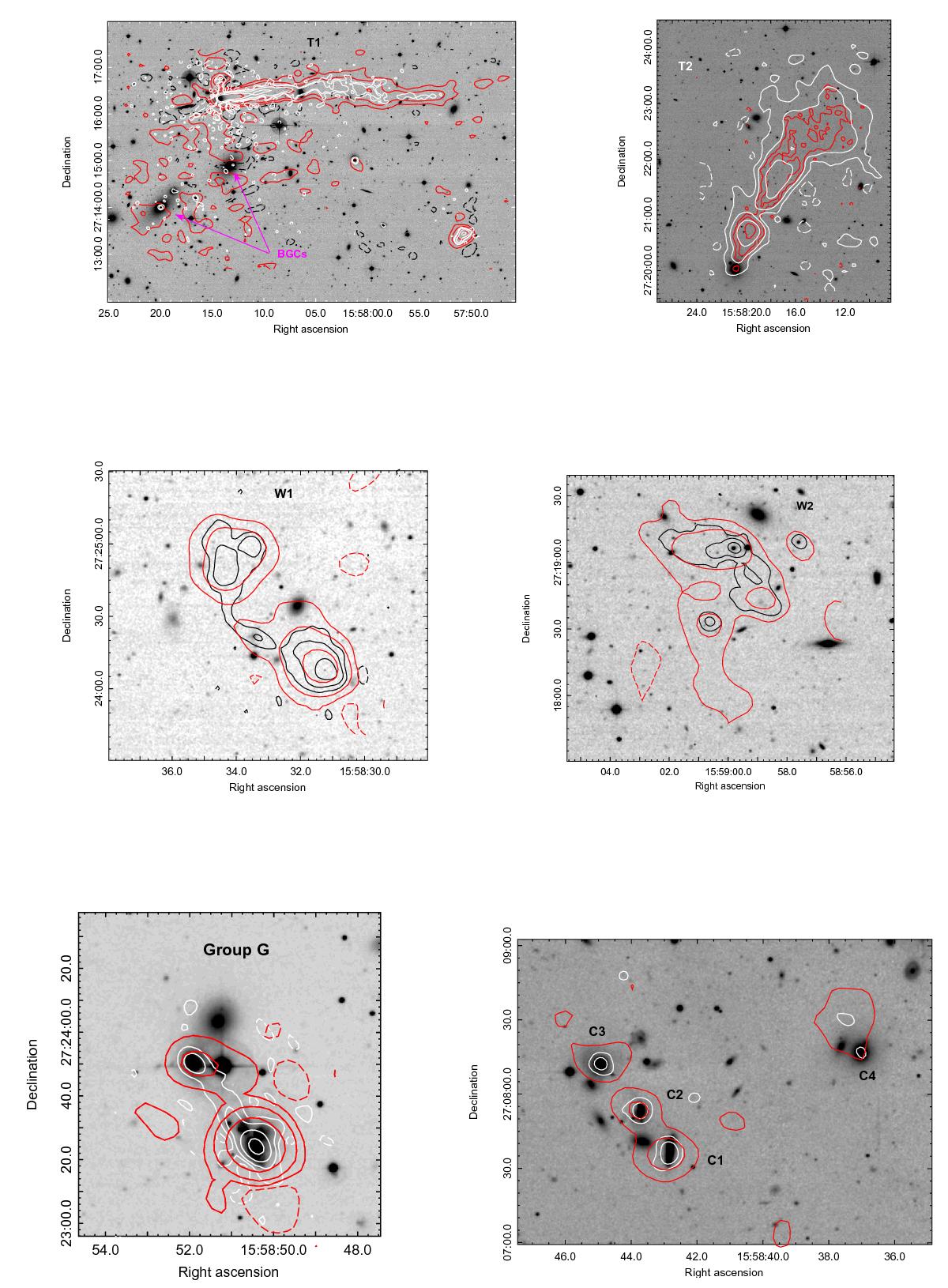

Overlays between a CFHT MegaCam g-band image and the radio emission at 608 MHz (resolution of 5.2′′ × 4.5′′, PA 52.6°) and at 234 MHz (resolution of 12.8′′ × 11.6′′, PA 67.3°). In all panels the 608 MHz contours are spaced by a factor of 4 starting from ±0.15 mJy b-1 and the 234 MHz contours are spaced by a factor of 4 starting from ±0.75 mJy b-1. Panels are as follows. Upper left: T1 (B2 1556+27), 608 MHz contours are indicated in white (negative dashed), 234 MHz contours are indicated in red (negative dashed black). The two BCGs are shown. Upper right: T2 (B2 1556+27), 608 MHz contours are shown in red (negative dashed), 234 MHz contours are shown in white (negative dashed). Central left: W1, 608 MHz contours are shown in black (negative dashed), 234 MHz contours are indicated in red (negative dashed red). Central right: W2, 608 MHz contours are indicated in black (negative dashed), 234 MHz contours are indicated in red (negative dashed). Bottom left: Group G, 608 MHz contours are shown in white (negative dashed), 234 MHz contours are shown in red (negative dashed). Bottom right: Group C, 608 MHz contours are indicated in white (negative dashed), 234 MHz contours are shown in red (negative dashed).
