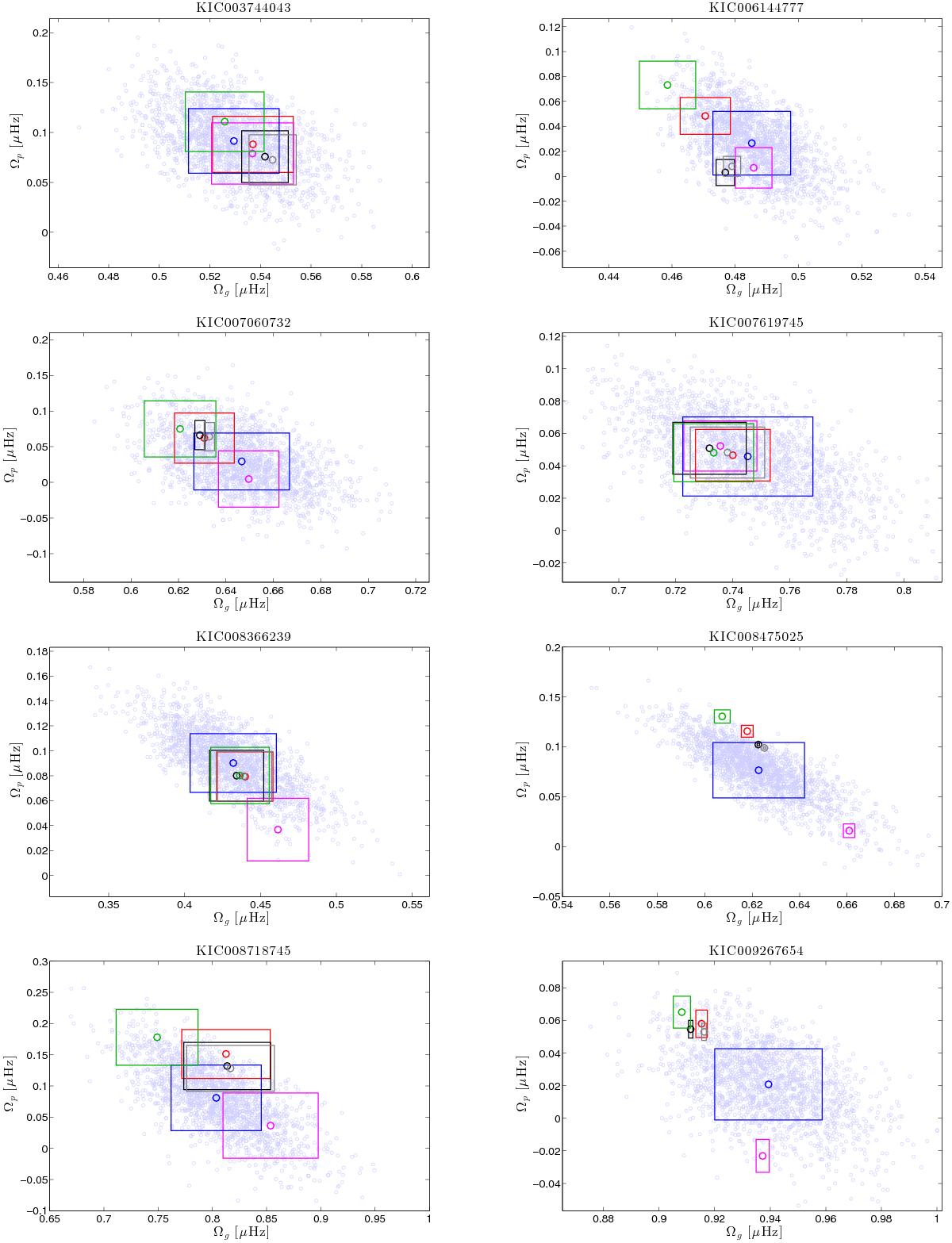

Fig. B.1


Rotation rates for all targets. Rotation rate of the envelopes (Ωp) on the ordinates, rotation rate of the cores (Ωg) on the abscissae. We show the results inferred from two-zone inversions (black), from SOLA inversions (green), from linear fits of δ vs. ζmod (red), from linear fits of δ vs. ζas (magenta), and from Bayesian inference (gray), all with their corresponding 1σ error margins. The cloud of light blue circles is the result of applying linear fits of δ vs. δP/ ΔΠ1 sampling randomly from the splittings δ and the observed mode frequencies ν, assuming a normal distribution for both. The blue error box indicates the 1σ standard deviation of the resulting distribution on each axis.
