Fig. 5

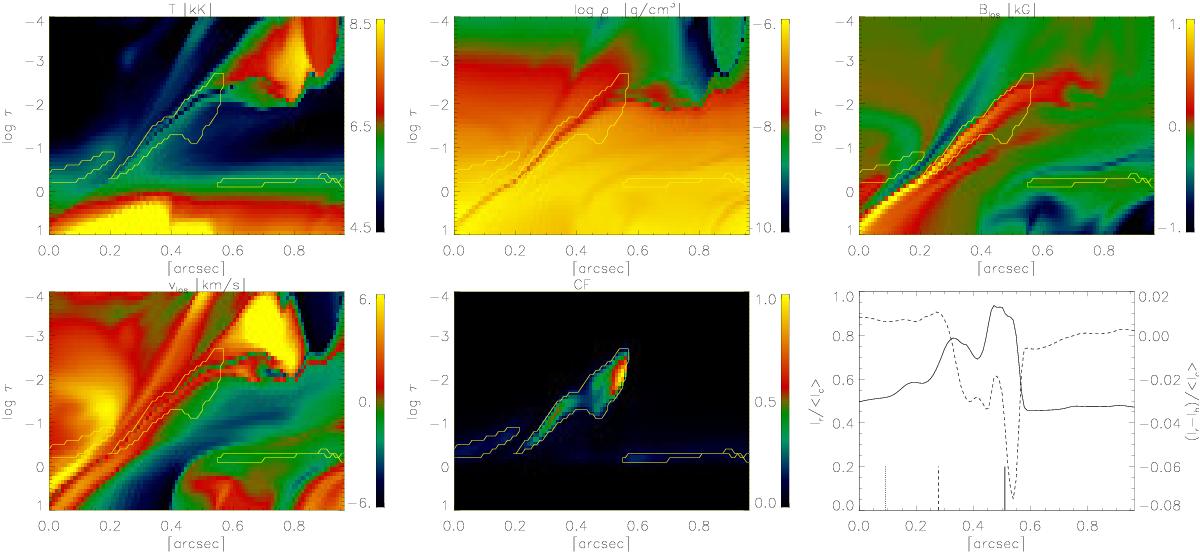

Vertical plane through the skewed simulation with viewing angle θ = 49° and azimuthal angle φ = 90°, along the cut segment specified in the right column of Fig. 3. The format is the same as in Fig. 4. The τ scales along the y-axes are now continuum optical depth at 5000 Å along the slanted lines of sight through the cut plane (which has the solar limb to the right). The x-axis scales are the apparent distance over the solar surface including foreshortening.
