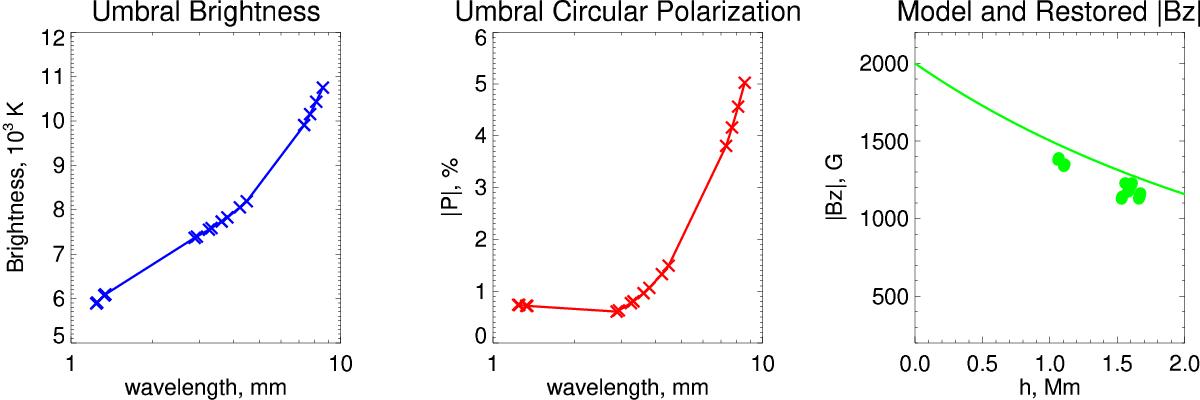

Fig. 13


Left and center: total brightness spectrum and degree of circular polarization calculated from the umbral model by Severino et al. (1994) at mm wavelengths. Crosses show the wavelengths of the 4 ALMA bands. Right: absolute value of the model longitudinal magnetic field as a function of height. Circles indicate the derived magnetic field plotted at the effective formation heights of the mm radiation.
