Fig. 3

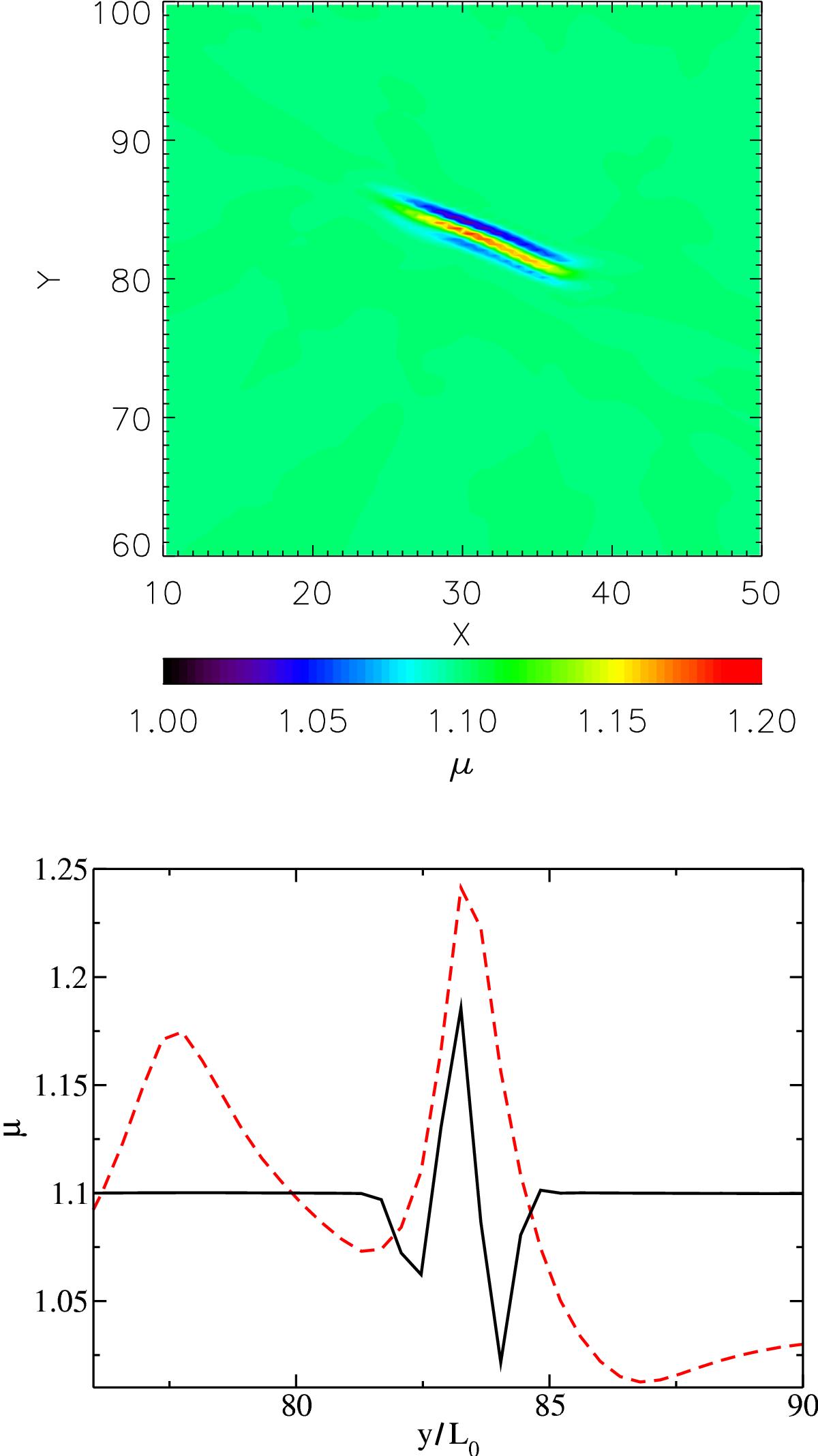

Top: representative mass-to-flux ratio map for Filament V-4 (see Table 2). Bottom: mass-to-flux ratio profiles through the core for Filament V-4 (SL, black, solid line) and Filament VI-4 (CR, red, dashed line). The centres of the cores are at y/L0 = 83.28 for Filament V-4 and y/L0 = 83.25 for Filament VI-4. The profiles are taken along the y-axis.
