Fig. 7

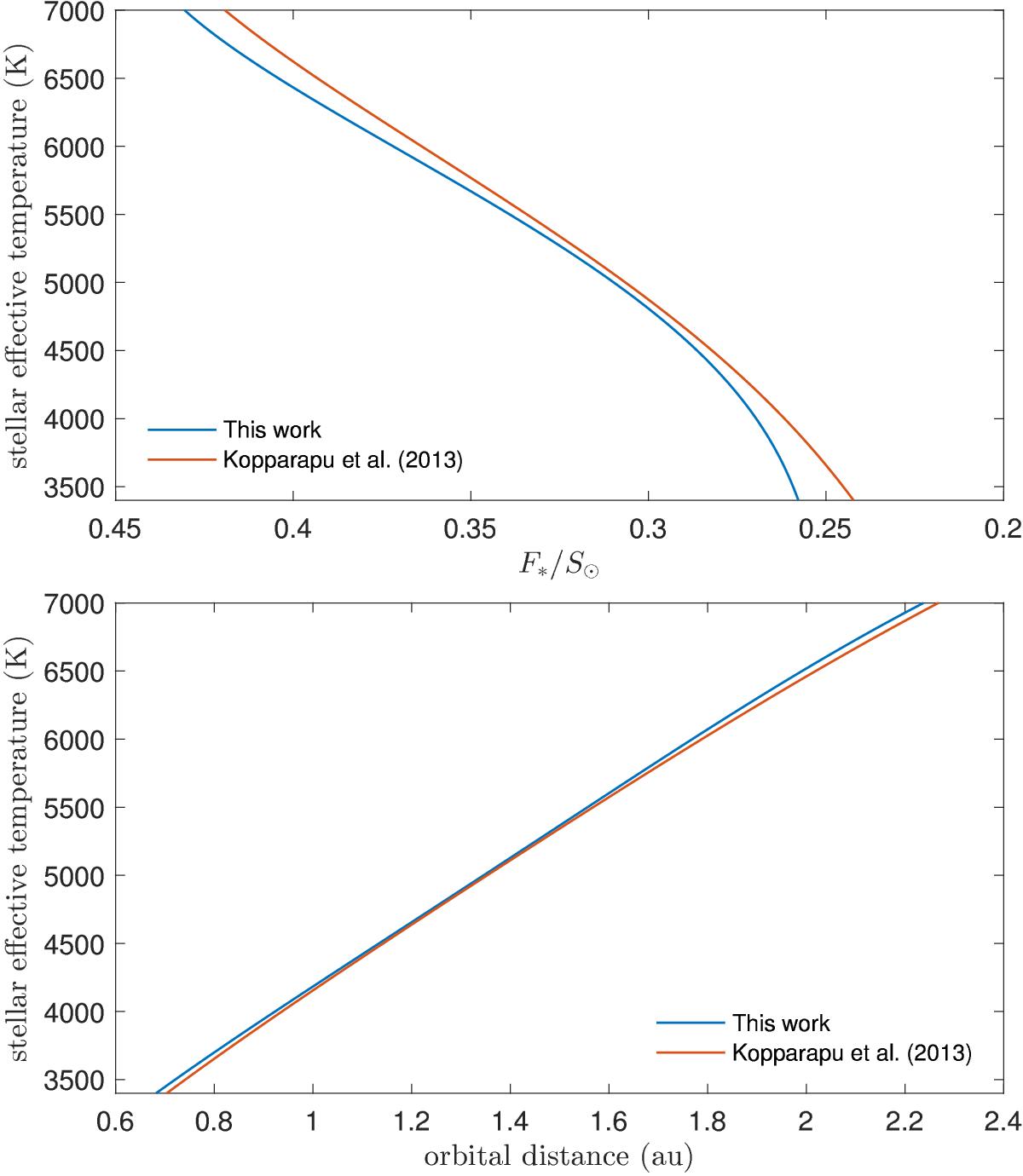

Cloud-free outer boundary of the habitable zone. The critical insolations F in units of the present day solar constant S for the maximum greenhouse effect (upper panel) and the corresponding orbital distances (lower panel) of the outer HZ boundary are shown as a function of the stellar effective temperature. The results of Kopparapu et al. (2013) are additionally presented for comparison (red curves).
