Fig. 9

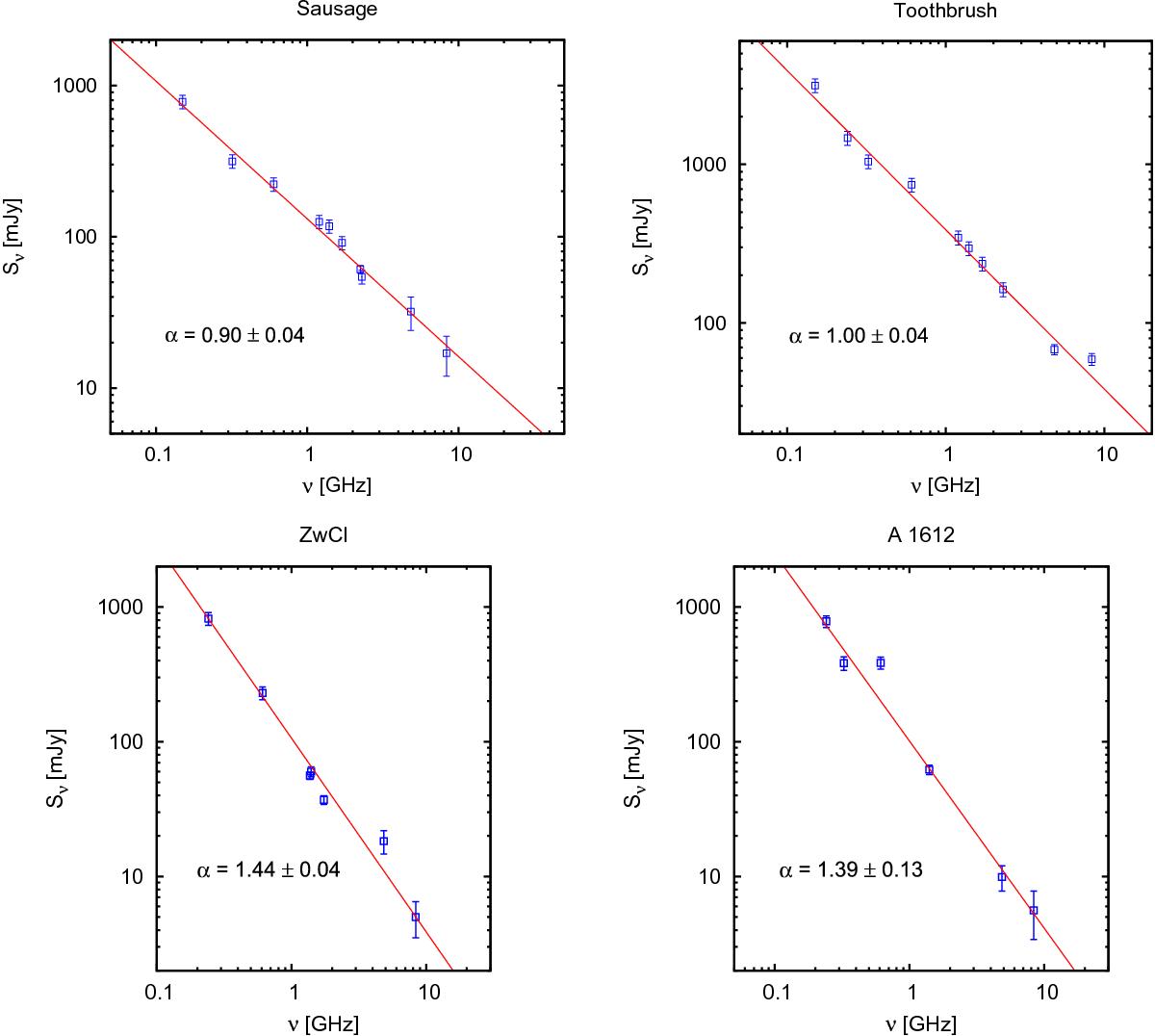

Integrated total intensity spectra of the relics considered in this paper. Top left: spectrum of the Sausage radio relic. The flux densities at frequencies lower than 4.85 GHz are taken from Table 3 of Stroe et al. (2016). Top right: spectrum of the Toothbrush radio relic. The flux densities at frequencies lower than 4.85 GHz are taken from Table 3 of Stroe et al. (2016). Bottom left: spectrum of the radio relic in ZwCl 0008+52. The flux densities at frequencies lower than 4.85 GHz are taken from van Weeren et al. (2011c). Bottom right: spectrum of the radio relic in Abell 1612. The flux densities at frequencies lower than 4.85 GHz are taken from van Weeren et al. (2011b).

This figure is made of several images, please see below:
