Fig. 3

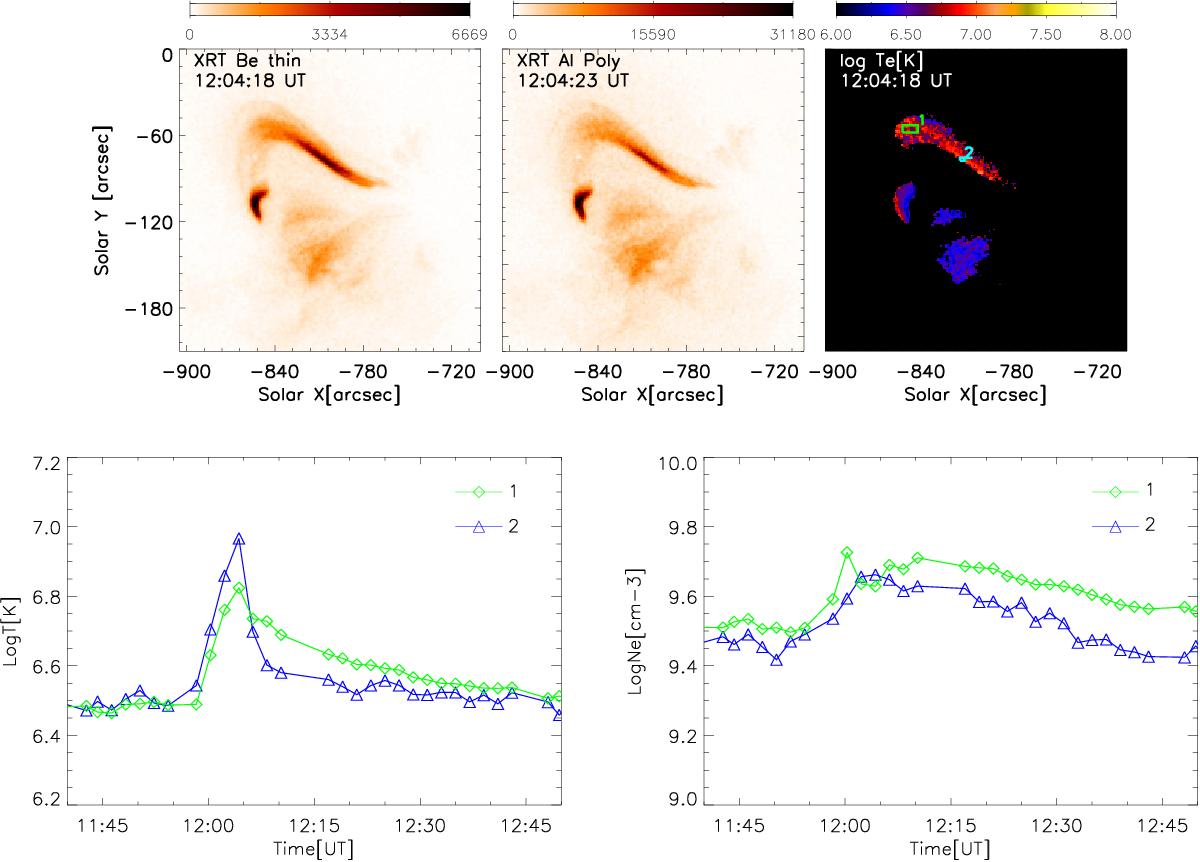

Top: images (reversed colours) of Hinode/XRT from the Be-thin (left) and the Al-poly (middle) filters, and a temperature map obtained using the ratio of the two filters (right). The temporal evolution of the temperature map is shown in a movie available online. The entire hot loop bundle has a temperature of 6–10 MK. Bottom-left: temporal evolution of the plasma temperature at the position indicated by the boxcars 1 (green) and 2 (light blue) in the top-right panel. Bottom-right: temporal evolution of the density in the hot loop from the boxcars 1 and 2.

This figure is made of several images, please see below:
