Fig. 3

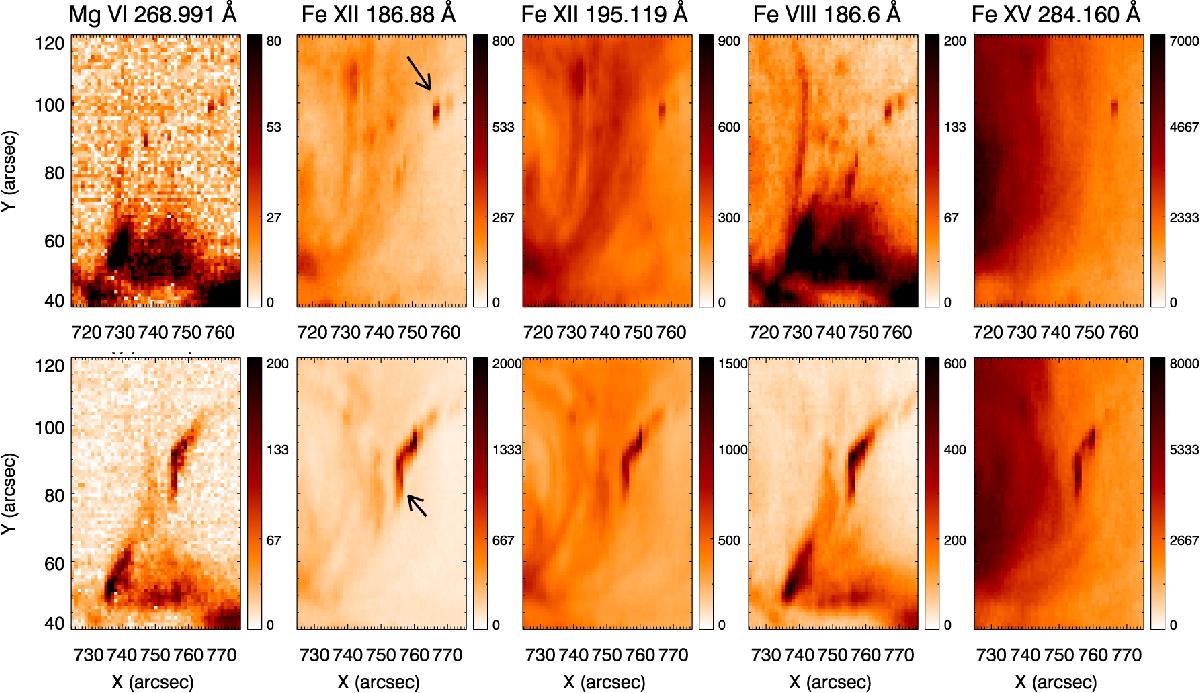

EIS raster images (reverse colour) showing the morphological features observed during the recurrent jet event in Mg VI, Fe VIII, Fe XII, and Fe XV lines. The jet spire (observed during 14:56:02–15:14:05 UT) (top panel) and the jet footpoint (observed during 16:28:17–16:46:20 UT) (bottom panel) are shown with arrows in the Fe XII images, respectively. The colour bars for the EIS rasters indicate the actual calibrated units (phot cm-2 s-1 arcsec-2).
