Fig. 8

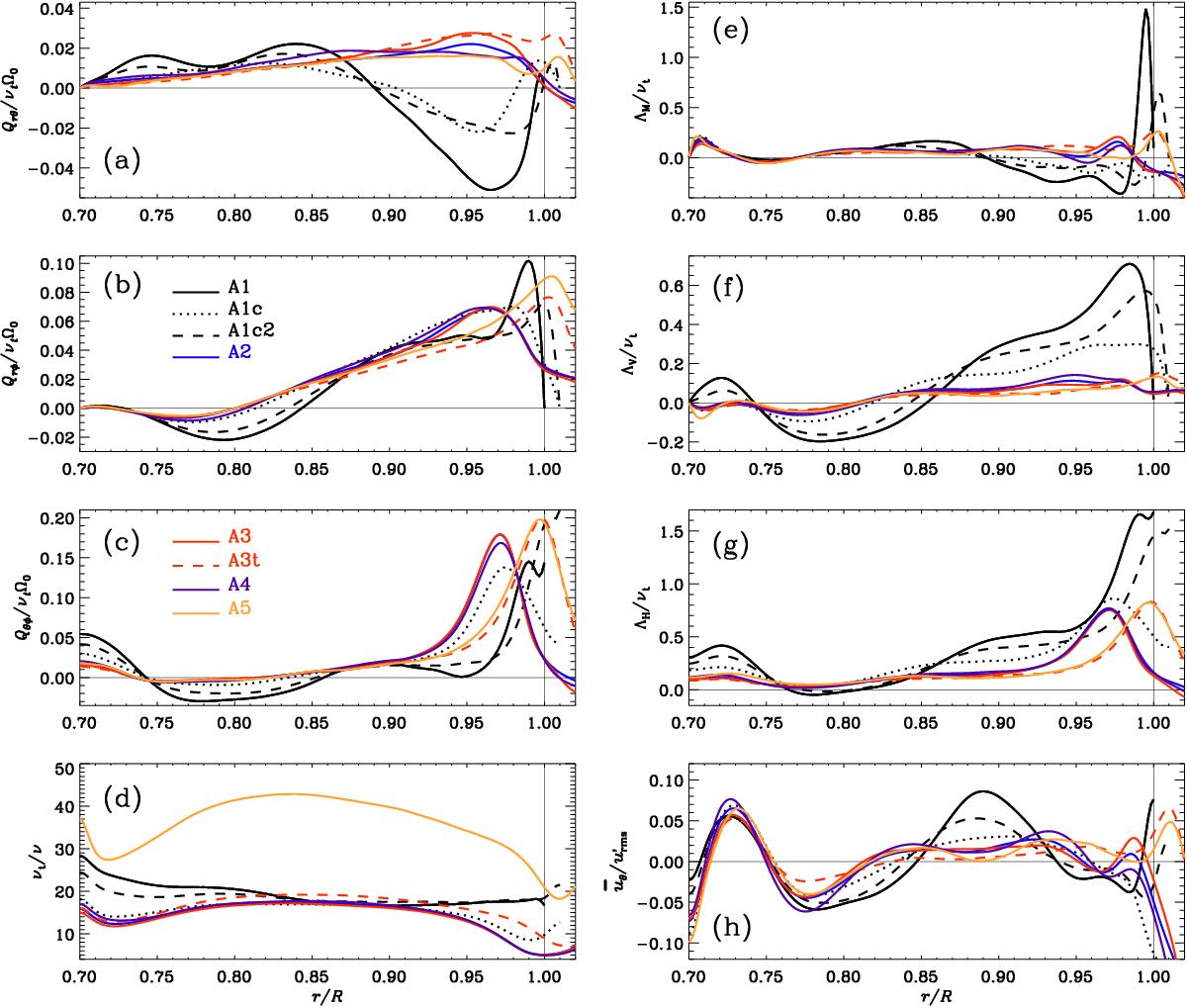

Off-diagonal components of the Reynolds stress Qrθa), Qrφb) and Qθφc) normalized by νtΩ0, the turbulent viscosity in terms of molecular viscosity νt/νd) and the three components of the Λ effect ΛMe), ΛVf) and ΛHg) normalized by νt as well as the meridional flow h) for Set A in the northern hemisphere at 15° latitude. The thin black lines indicate the zero value and the surface (r = R).
