Fig. 3

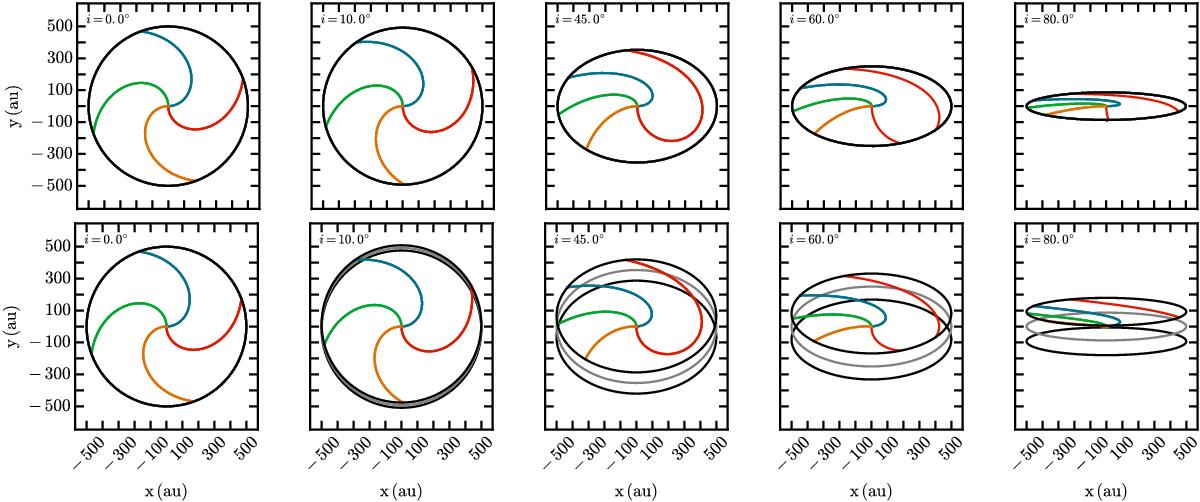

Shadows cast on a flat (top panels) and flared (bottom) disk in clockwise rotation and with an outer radius of 400 au. The coloured curves indicate shadowing by clumps orbiting at rrim = 0.1 au and with instantaneous orbital phases of θrim = 0, π/ 2, π, and 3π/ 2 rad. The panels, from left to right, show i = 0°, 10°, 45°, 60°, and 80°. Additional circles in the bottom row show the midplane and downward-facing edge of the disk.

This figure is made of several images, please see below:
