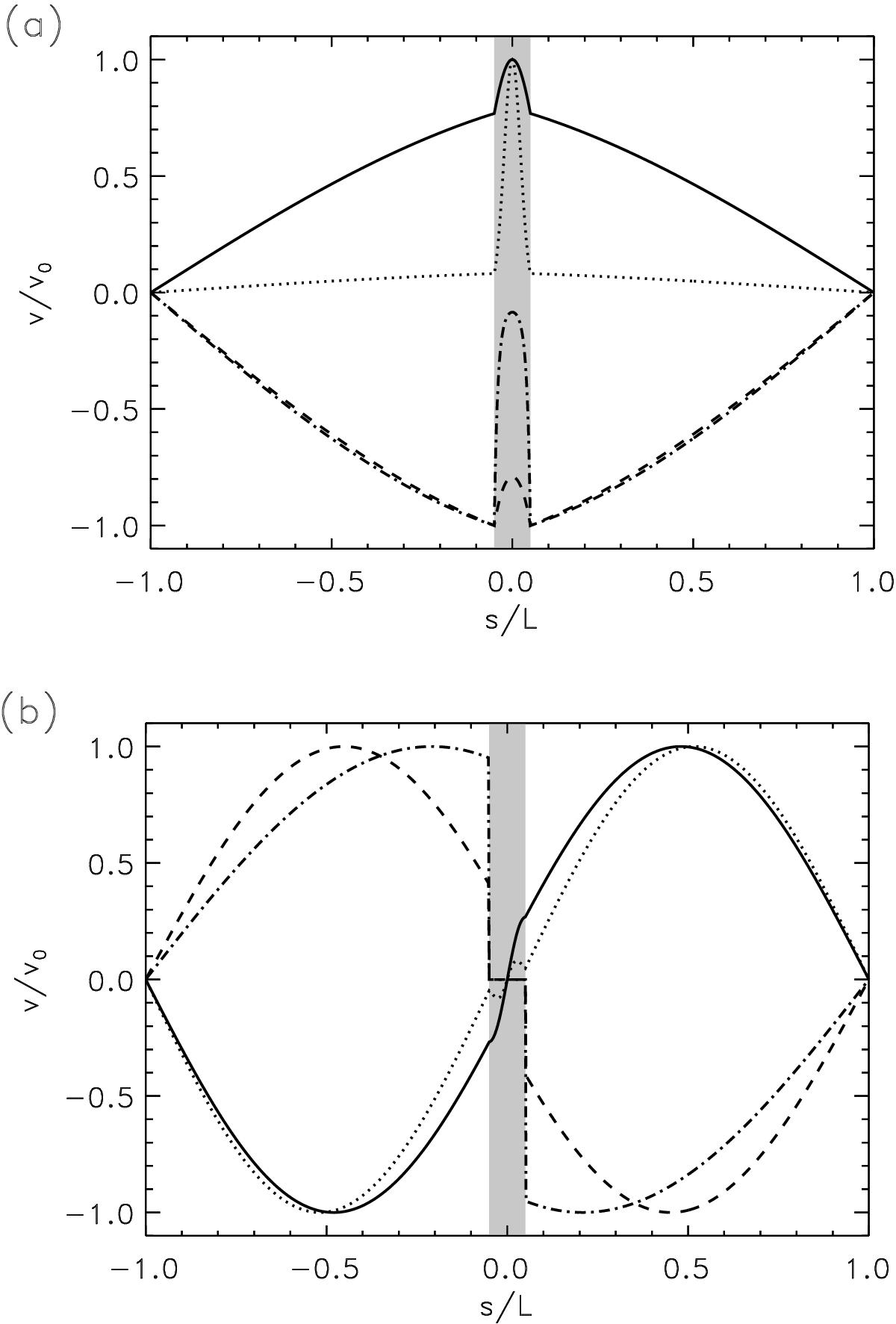

Fig. 5

Normalized velocities of: a) the fundamental mode (first-kind) for ϵ2 = 0.01 Mm-2 (solid line), 0.1 Mm-2 (dotted line), −0.01 Mm-2 (dashed line), and −0.1 Mm-2 (dot-dashed line); b) the first overtone (second-kind) for different expansion parameters. The half-length of the tube is set to L = 100 Mm, the thread half-length l = 5 Mm, the radius of curvature R = 60 Mm, the coronal sound speed csc = 200 km s-1 , the contrast χ = 100, and ϵ2 = 0.005 Mm-2. The shaded area represents the position of the cool prominence plasma.
