Fig. 3

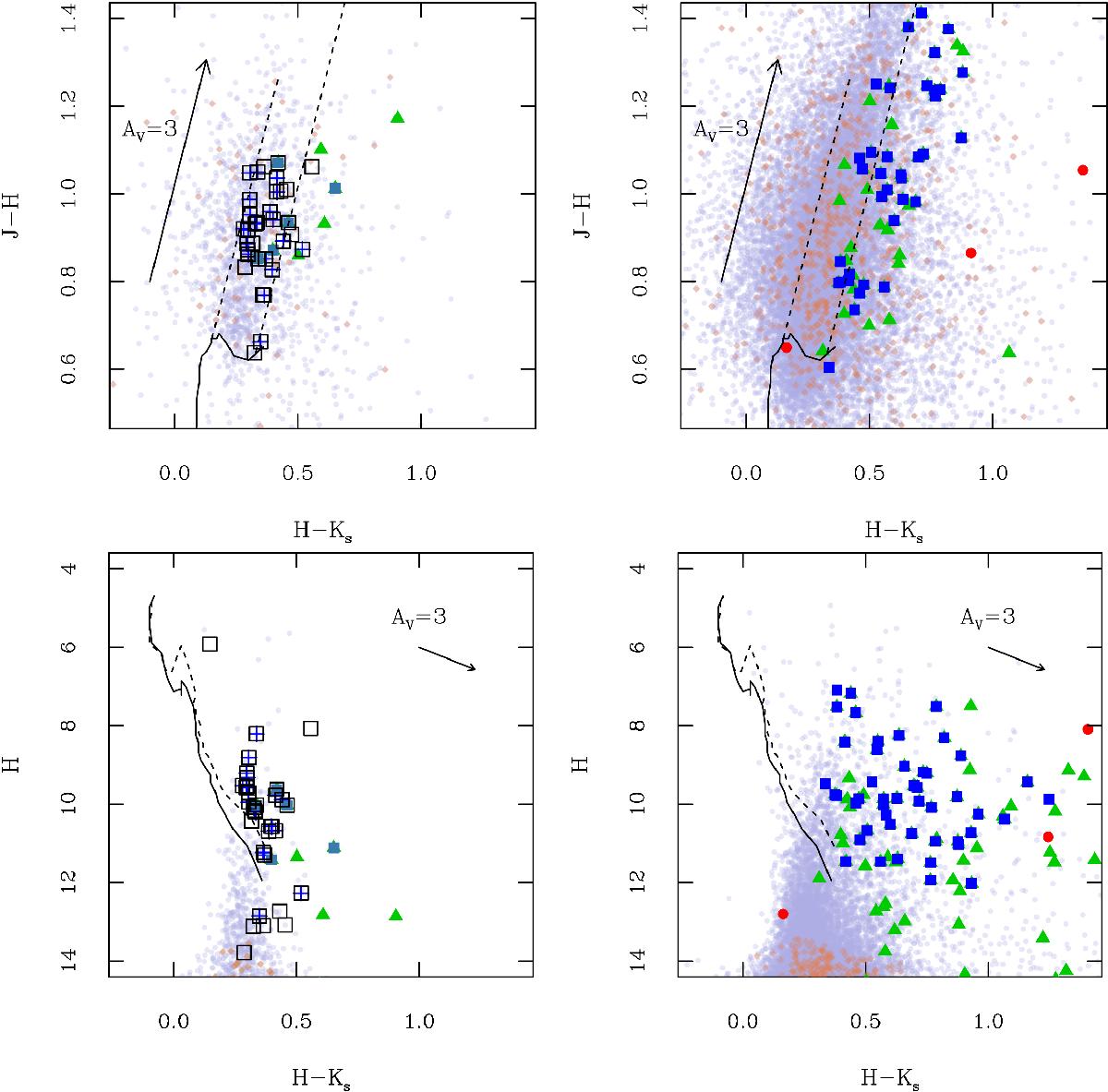

Top panels: 2MASS JH vs. HKs for objects around ρ Ophiuchi (left panel), and for L1688 (right panel). Bottom panels: H vs. HKs for the same two regions. Isochrones at 10 Myr (solid line) and 5 Myr (dashed line) (Siess et al. 2000) at the distance of ρ Ophiuchi (120 pc) are traced in both panels. Symbols are as in Fig. 2. Reddening vectors corresponding to AV = 3 are indicated. AV = 3 is close to the extinction value derived from gas absorption NH around ρ Ophiuchi, and this is about ten times lower than in L1688.An age comprised between 5 and 10 Myr for most of objects is also inferred from the best fit of Lbol and Teff (Sect. 3.2).

This figure is made of several images, please see below:
