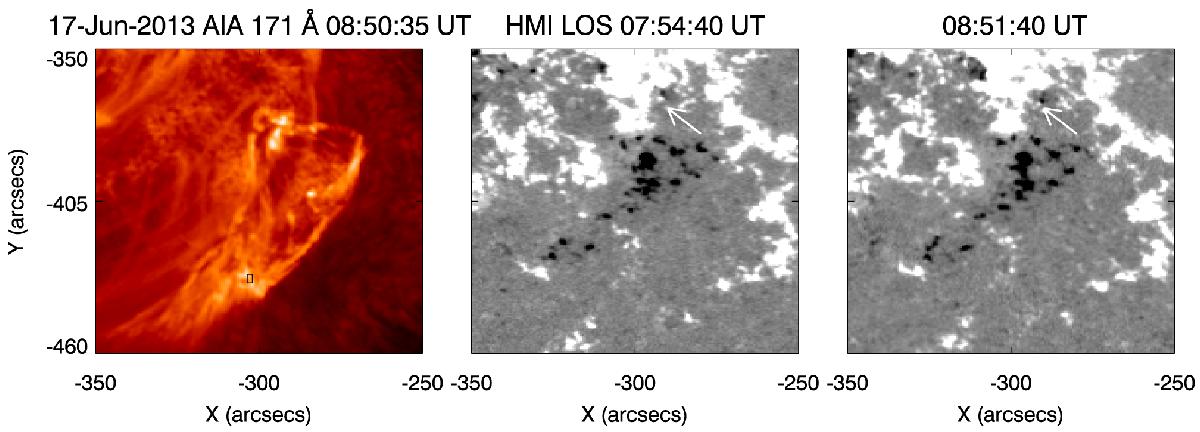

Fig. A.17


Jet 19: 2013 Jun 17 – Left panel: AIA 171 Å image of the jet, observed on 2013 Jun 17. The jet appeared to evolve from the edge of the active region, 11770 (S13 E13). The jet was associated with a closed loop structure and a complex, multi-threaded jet was originated from one of the footpoints of loop showing its untwisting nature. It has been observed that the jet plasma couldn’t escape fully in the solar atmosphere, a part of it flows along the closed loop structure. The jet started its activity at 08:40 UT and lasted until 09:06 UT. Middle panel and right panel: the LOS HMI magnetogram image at 07:54 UT, before the jet evolution, and at 08:51 UT, during the jet evolution, respectively. The positive-polarity cancellation at the nearby negative-polarity region was observed and is shown by white arrows. This magnetic activity lasted for a few hours and was co-temporal and co-spatial with the jet activity.
