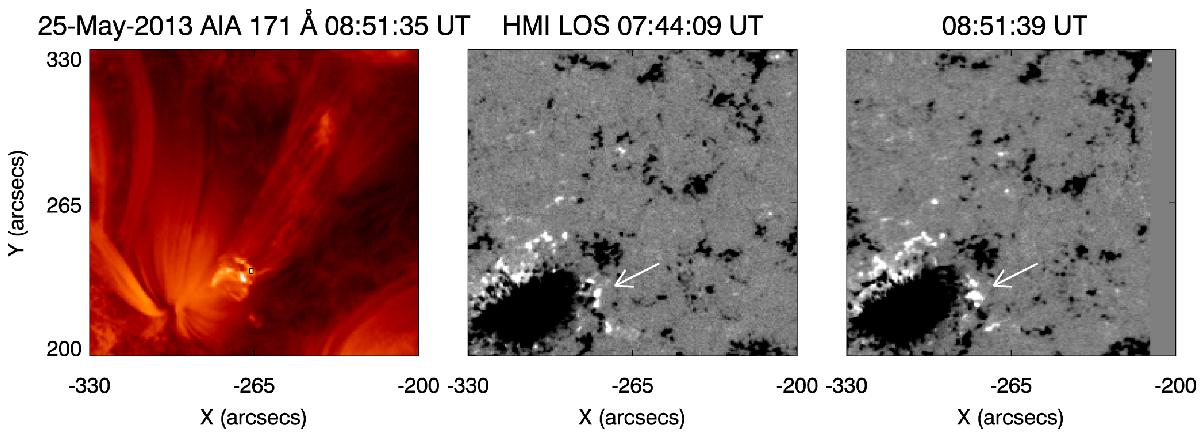

Fig. A.16

Jet 18: 2013 May 25 – Left panel: AIA 171 Å image of the jet, observed on 2013 May 25. The jet appeared to evolve from the edge of the active region, 11748 (N12 W83). The jet was associated with a small loop at the footpoint and complex, multi-threaded jet was originated from it showing the untwisting nature. The jet started its activity at 08:45 UT and lasted until 08:53 UT. Middle panel and right panel: the LOS HMI magnetogram image at 07:44 UT, before the jet evolution, and at 08:51 UT, during the jet evolution, respectively. The positive-polarity emergence at the edge of the negative-polarity sunspot was observed and is shown by white arrows. This magnetic activity lasted for a few hours and was co-temporal and co-spatial with the jet activity.
