Fig. A.11

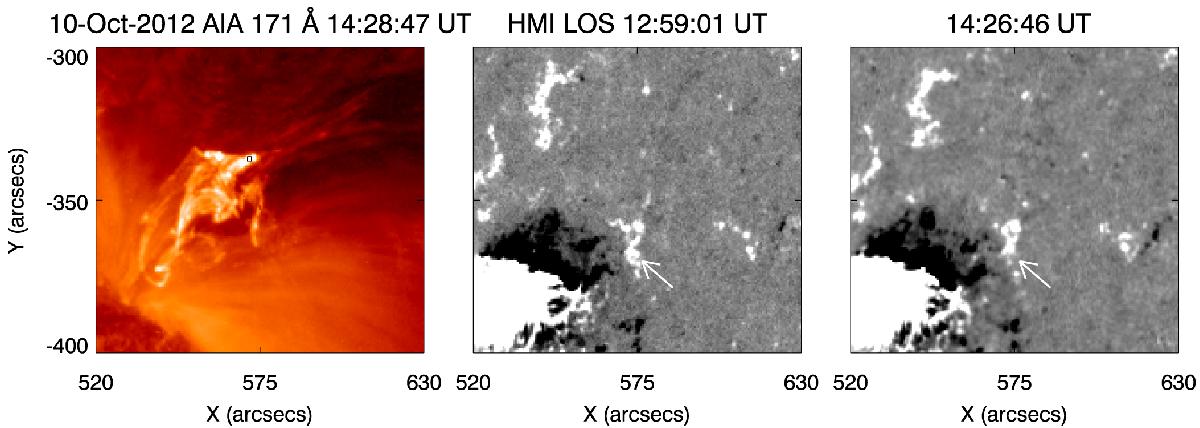

Jet 12: 2012 October 10 – Left panel: AIA 171 Å image of the jet, observed on 2012 October 10. The jet appeared to evolve from the edge of the active region, 11585 (S20 W43). A small-scale brightening was observed at 14:26 UT at the jet footpoint before the jet evolution and the jet evolved as a multi-threaded spire. A small burst is observed at the footpoint. The jet started its activity at 14:21 UT and lasted until 14:45 UT. Middle panel and right panel: the LOS HMI magnetogram image at 12:59 UT, before the jet evolution, and at 14:26 UT, during the jet evolution, respectively. The positive-polarity cancellation with nearby negative-polarity region was observed and is shown by white arrows. This magnetic activity lasted for a few hours and was co-temporal and co-spatial with the jet activity.
