Fig. A.10

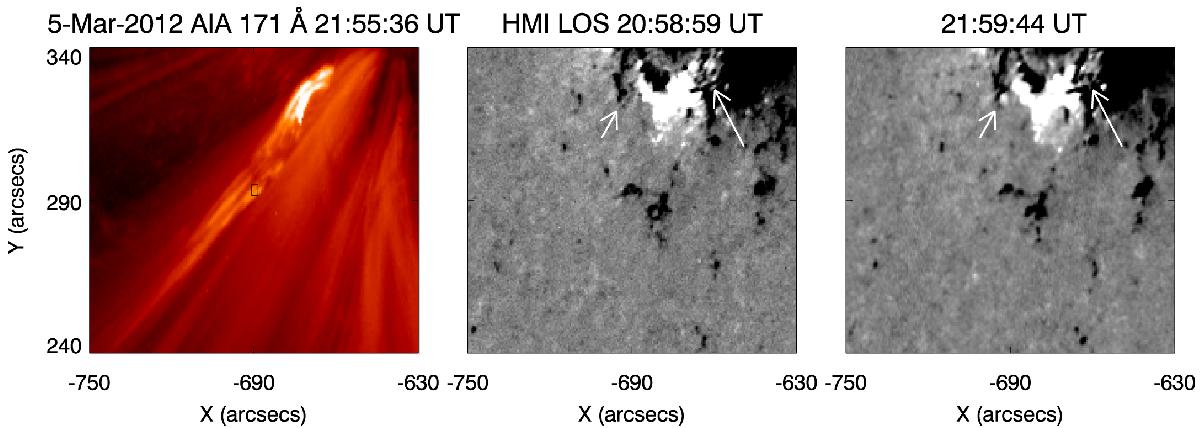

Jet 11: 2012 March 5 – Left panel: AIA 171 Å image of the jet, observed on 2012 March 5. The jet appeared to evolve from the edge of the active region, 11429 (N18 E41). A small-scale brightening was observed at 21:50 UT at the jet footpoint before the jet evolution and the jet evolved as a multi-threaded spire. A small loop is observed at the footpoint. The jet started its activity at 21:51 UT and lasted until 22:00 UT. Middle panel and right panel: the LOS HMI magnetogram image at 20:58 UT, before the jet evolution, and at 21:59 UT, during the jet evolution, respectively. The positive-polarity cancellation with nearby negative-polarity region was observed and is shown by white arrows. This magnetic activity lasted for a few hours and was co-temporal and co-spatial with the jet activity.
