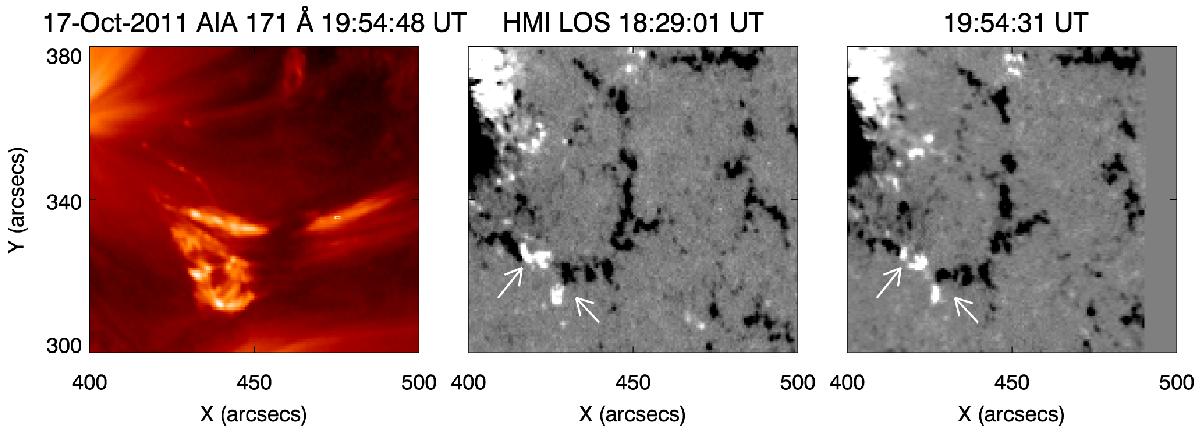

Fig. A.6

Jet 7: 2011 October 17 – Left panel: AIA 171 Å image of the jet, observed on 2011 October 17. The jet appeared to evolve from the edge of the active region, 11314 (N28 W32), which was associated with a negative-polarity sunspot. A small-scale brightening was observed at 19:49 UT at the jet footpoint, before the jet evolution and the jet evolved as a complex, multi-threaded spire with inverted Y topology. The jet started its activity at 19:48 UT and lasted until 20:04 UT. Another similar jet was also observed at 20:07 UT in a nearby region. Middle panel and right panel: the LOS HMI magnetogram image at 18:29 UT, before the jet evolution, and at 18:54 UT, during the jet evolution, respectively. Flux cancellation was observed and is shown by white arrows. This magnetic activity lasted for a few hours and was co-temporal and co-spatial with the jet activity.
