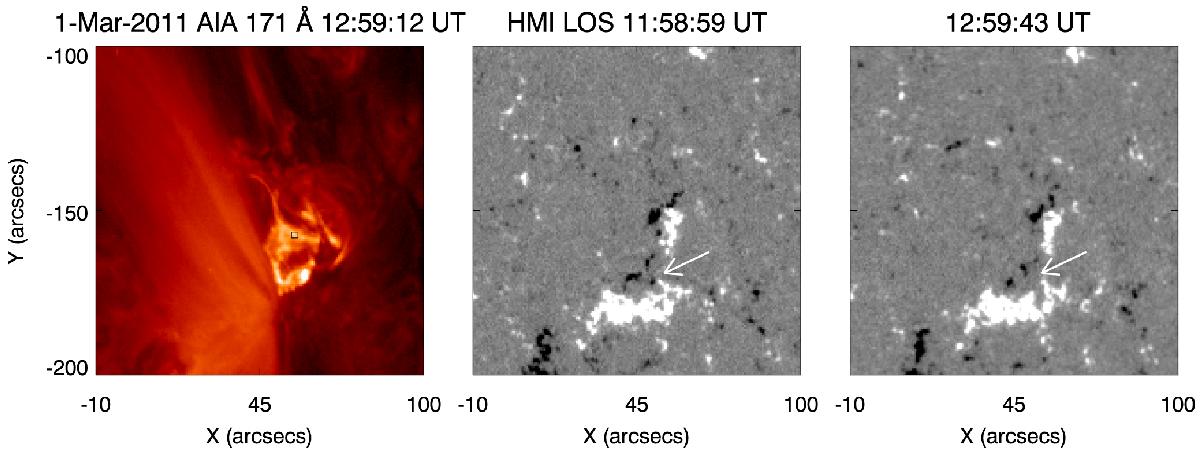

Fig. A.4


Jet 5: 2011 March 1 – Left panel: AIA 171 Å image of the jet, observed on 2011 March 1. The jet appeared to evolve from the edge of the active region 11165 (S21 W00). A small-scale brightening was observed at 12:53 UT at the jet footpoint, before the jet evolution and the jet evolved as a complex, multi-threaded spire. The jet started its activity at 12:53 UT, and lasted until 13:18 UT. Middle panel and right panel: the LOS HMI magnetogram image at 11:58 UT before the jet evolution and at 12:59 UT, during the jet evolution, respectively. The negative flux cancellation with nearby positive-polarity region was observed and is shown by white arrows. This magnetic activity lasted for a few hours and was co-temporal and co-spatial with the jet activity.
