Fig. 4

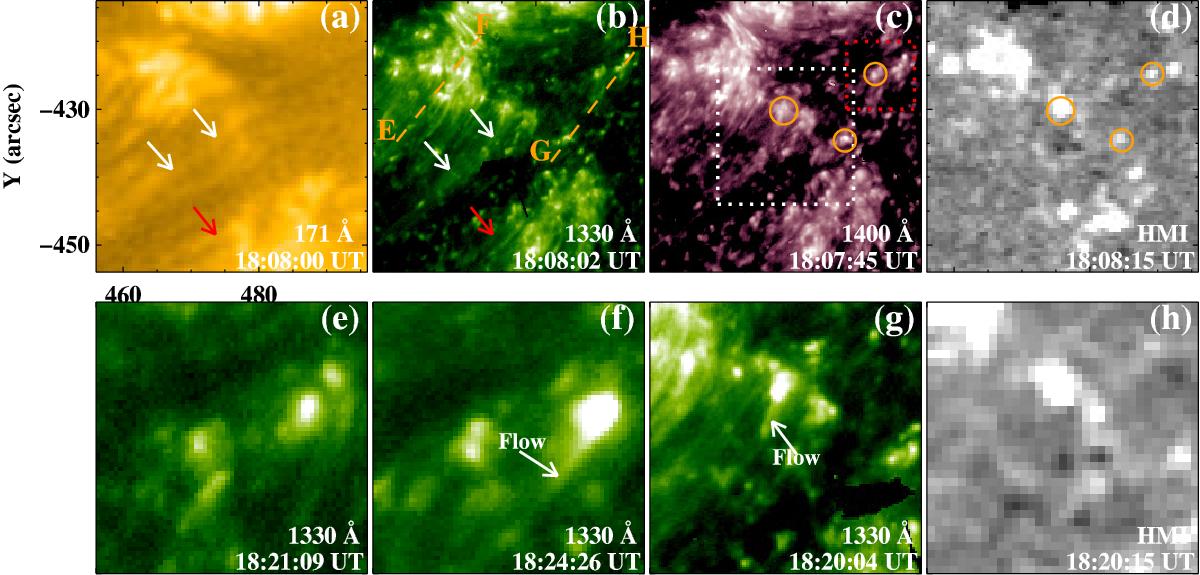

Appearance of BPs and upflows in region “R2” (white square in Fig. 1c). The arrows (panels a), b)) point to the loop-like structures connecting with BPs in AIA 171 Å and IRIS 1330 Å images. Dashed lines “EF” and “GH” (panel b)) show the cut positions used to obtain the stack plots shown in Figs. 5c–d. The yellow circles outline the locations of several BPs in the 1400 Å image and HMI LOS magnetogram. Red and white squares in panel c) denote the FOVs of panels e)f) and g)h), respectively.
