Fig. A.4

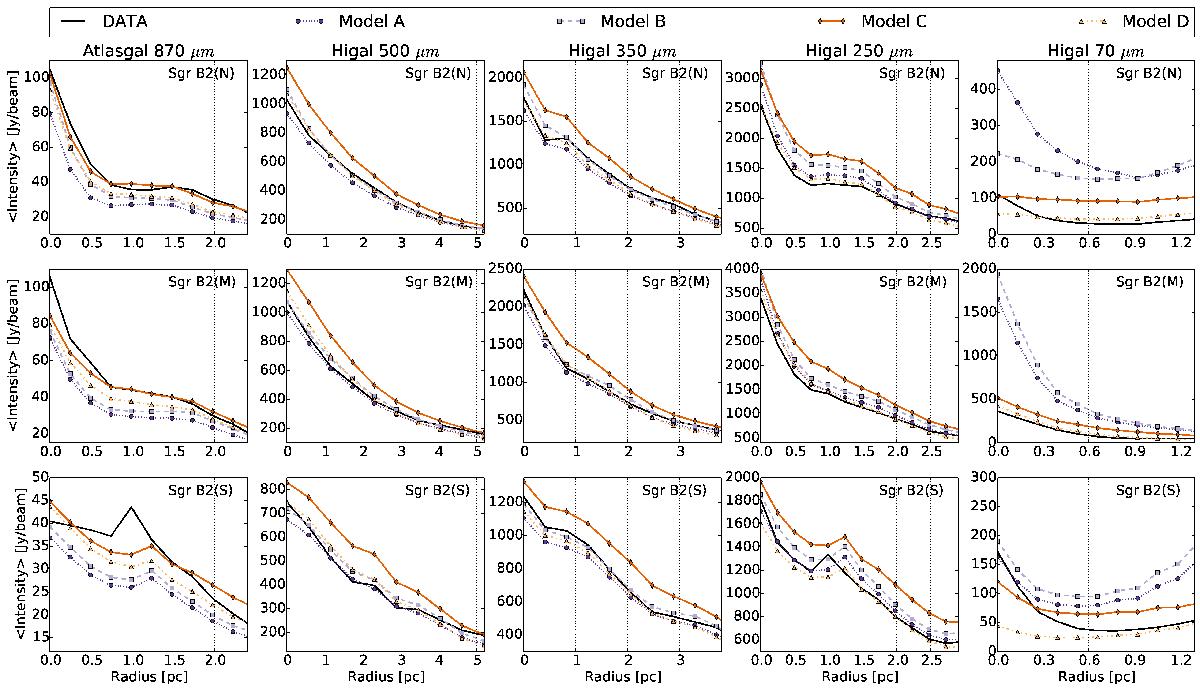

Azimuthally averaged radial profiles of the large-scale structure around the position of the envelope components of Sgr B2(N) (top row), Sgr B2(M), (middle row) and Sgr B2(S) (bottom row). The data is plotted in solid black. The wavelengths decreases from left to right: 870 μm, 500 μm, 350 μm, 250 μm, and 70 μm.
