Fig. 16

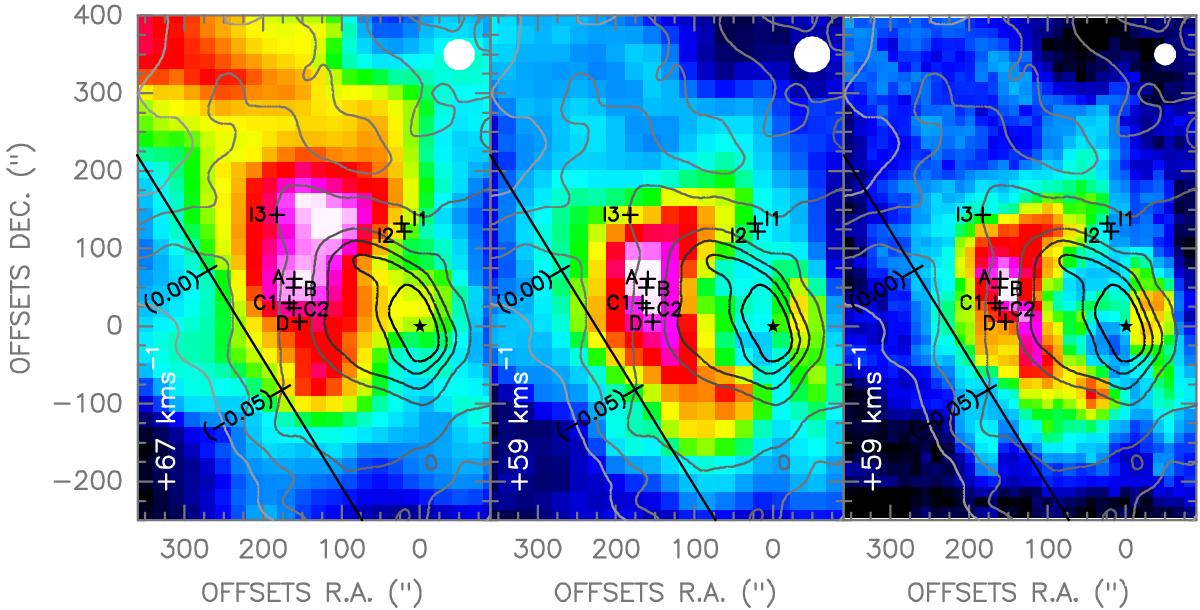

Integrated intensity maps (3 km s-1 wide) of the CO(43), [CI](10), and [CI](21) emission (colour scales) for the +50 km s-1 cloud. The filled white circles represent the spatial resolution of the data, and the central LSR velocity of the maps is given in each panel. The 20 cm continuum emission from the Sgr A-East region measured by Yusef-Zadeh & Morris (1987b) is shown as contours. The solid straight line shows the position of the Galactic plane at , with marks denoting a few Galactic longitude values for orientation. The crescent-shape in all three sub-mm lines at different LSR velocities surrounding the Sgr A-East region reveals the interaction of the +50 km s-1 cloud with the non-thermal source.
