Fig. A.2

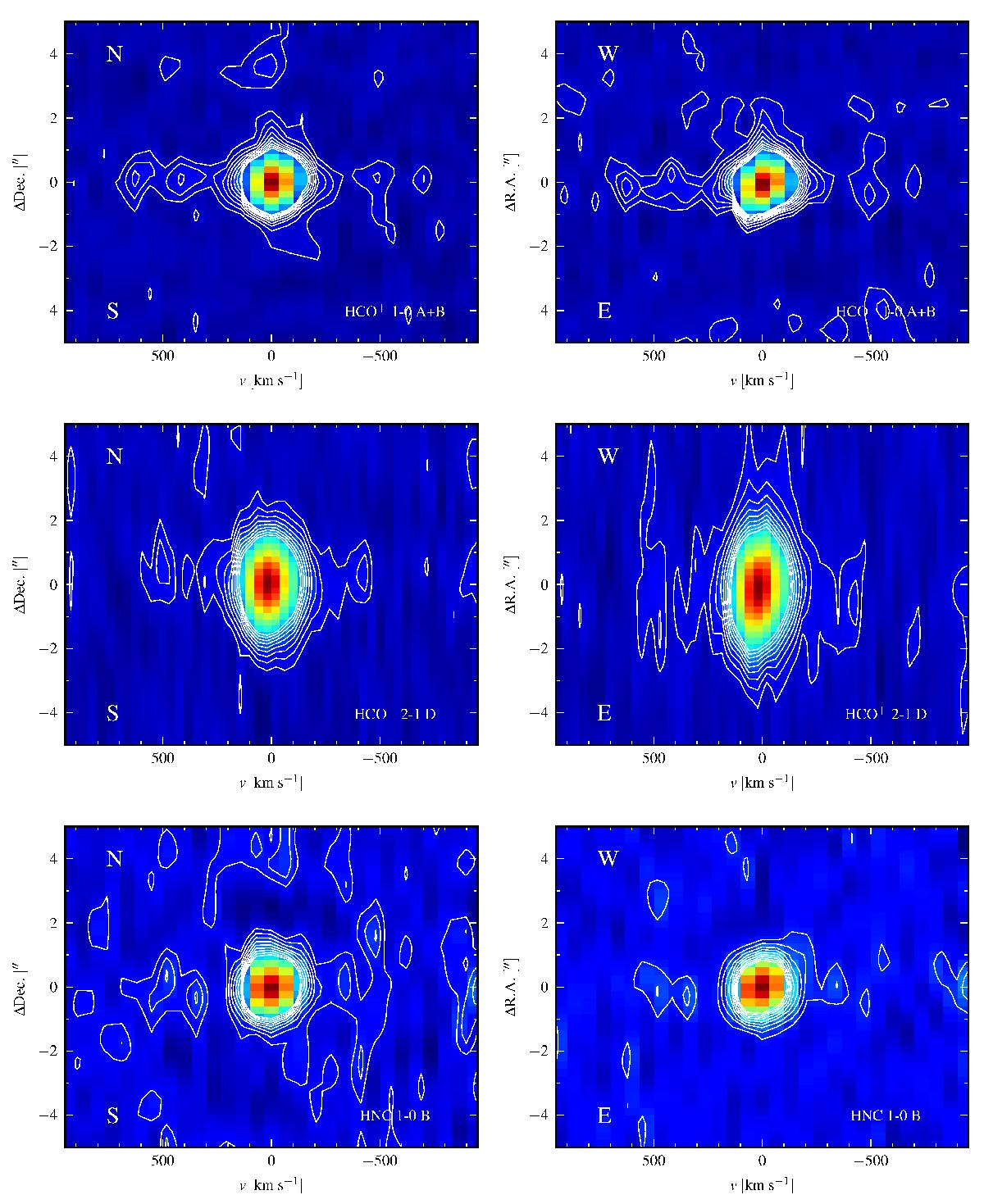

PV diagrams of individual HCO+ and HNC transitions (contours at 2σ). The HCO+ 1–0 PV diagram uses a combination of PdBI A-array and B-array observations. The HCO+ 2–1 PV diagram is made from PdBI D-array observations. The HNC 1–0 PV diagram uses PdBI B-array observations.
