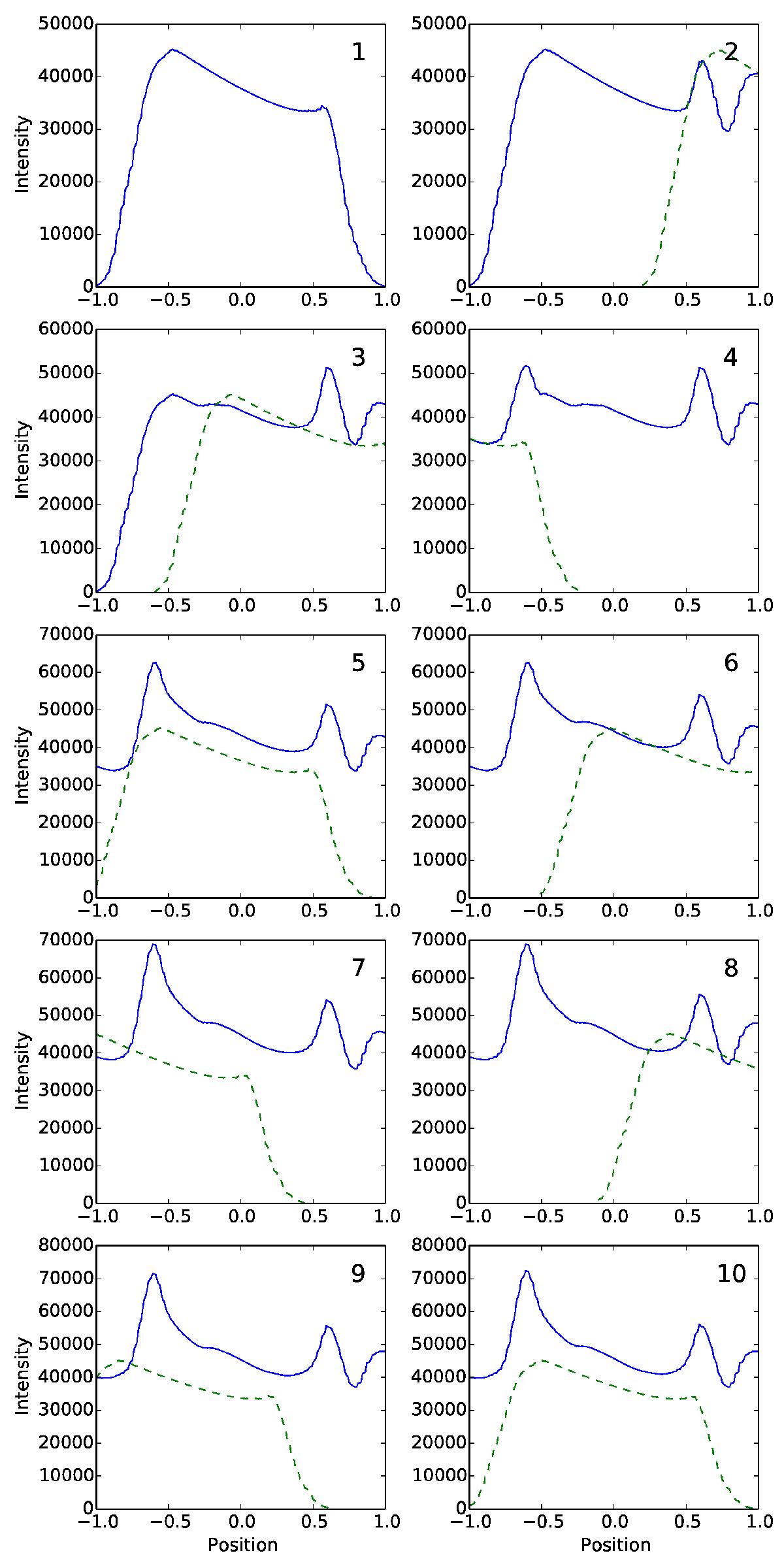

Fig. 8


Cumulative effect of unaligned threads on the total emergent intensity for the Lyman α line. The solid blue line shows the emergent intensity after integration through N threads, whilst the dashed green line shows the emergent intensity of the Nth thread in the LOS on its own. N is given by the number in the top right-hand corner of each panel. The intensity is given in erg s-1 cm-2 sr-1 and the position is in Mm. The position direction is oriented vertically away from the solar surface with the zero point at the centre of the field of view. The radiation emergent from each thread is computed with the p4 model.
