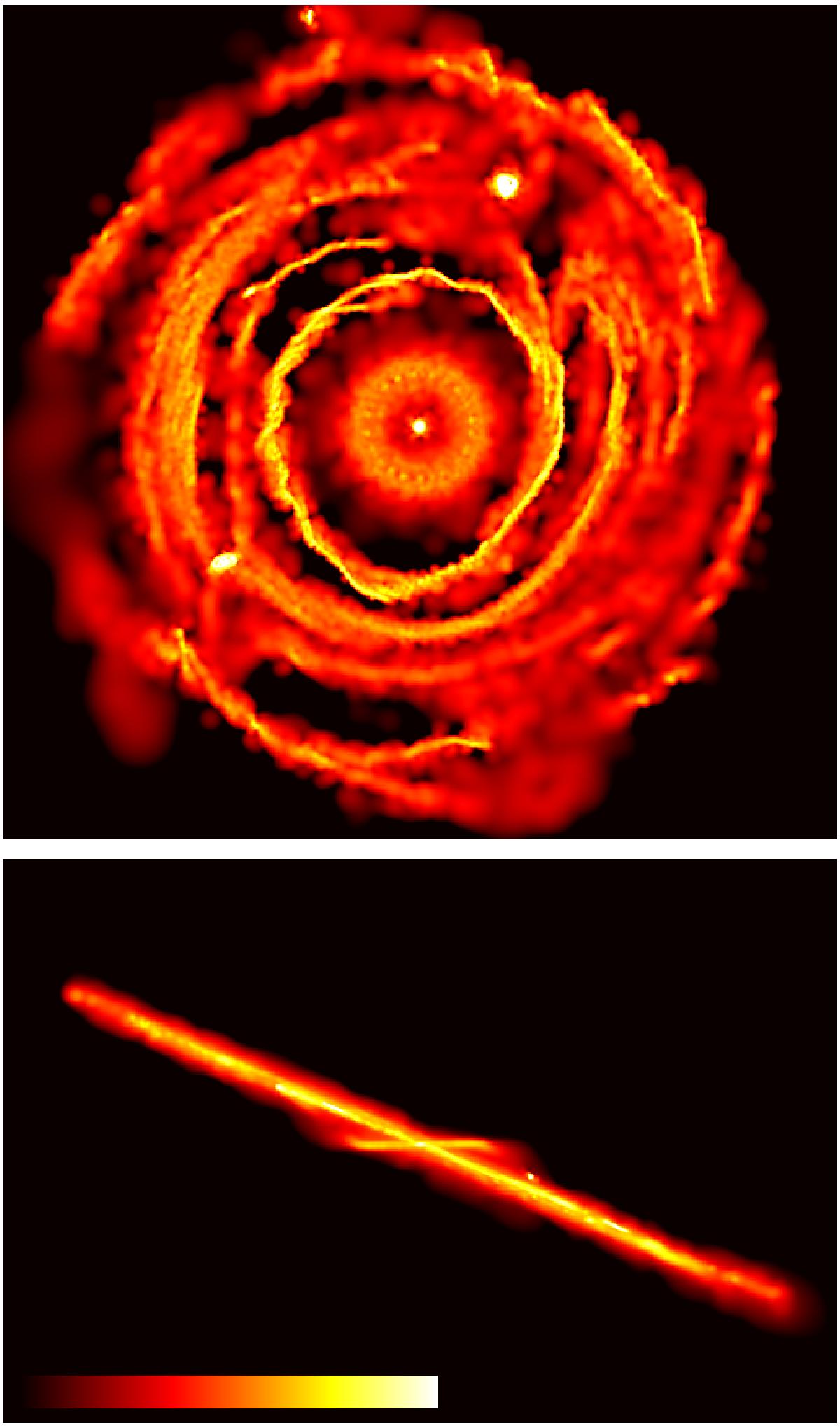

Fig. 6
Top (bottom): colour-coded density map of gas in run R1 at t = 2 Myr when the inner ring is projected face-on (edge-on). The density map is smoothed over the smoothing length of single particles. The top (bottom) panel measures 5 × 5 pc (5 × 3.4 pc), and the colourbar ranges from 0.02 to 700 M⊙ pc-3 (from 0.1 to 2230 M⊙ pc-3).
