Fig. 3

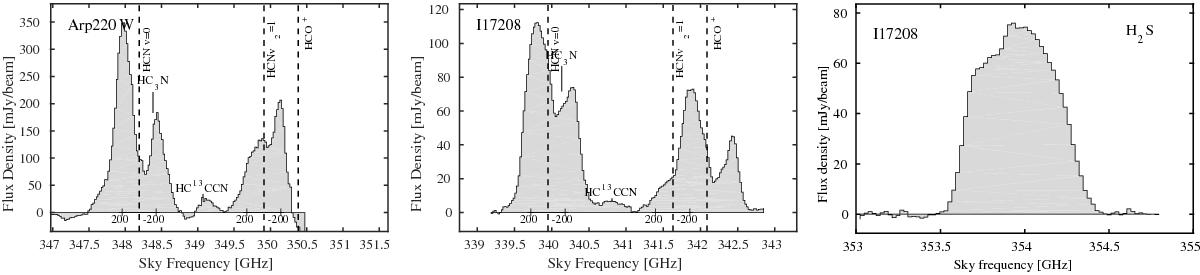

ALMA spectra (continuum subtracted) of Arp220W (left panel) and IRAS 17208-0014 (centre and right panels). The systemic velocities of HCN, HCO+ and HCN-VIB J = 4–3 and the H2S lines are marked with dashed vertical lines. The self- and continuum absorption leads to double-peaked HCN and HCO+ν = 0 spectra while the HCN-VIB and H2S lines are single-peaked close to systemic velocity (see Sect. 4.2). Half of the HCN-VIB is blended with the HCO+ line. Note that part of the HCO+ line is outside the band for Arp220W. We also detect lines of HC3N and HC13CCN. Fluxes are in mJy beam-1.

This figure is made of several images, please see below:
