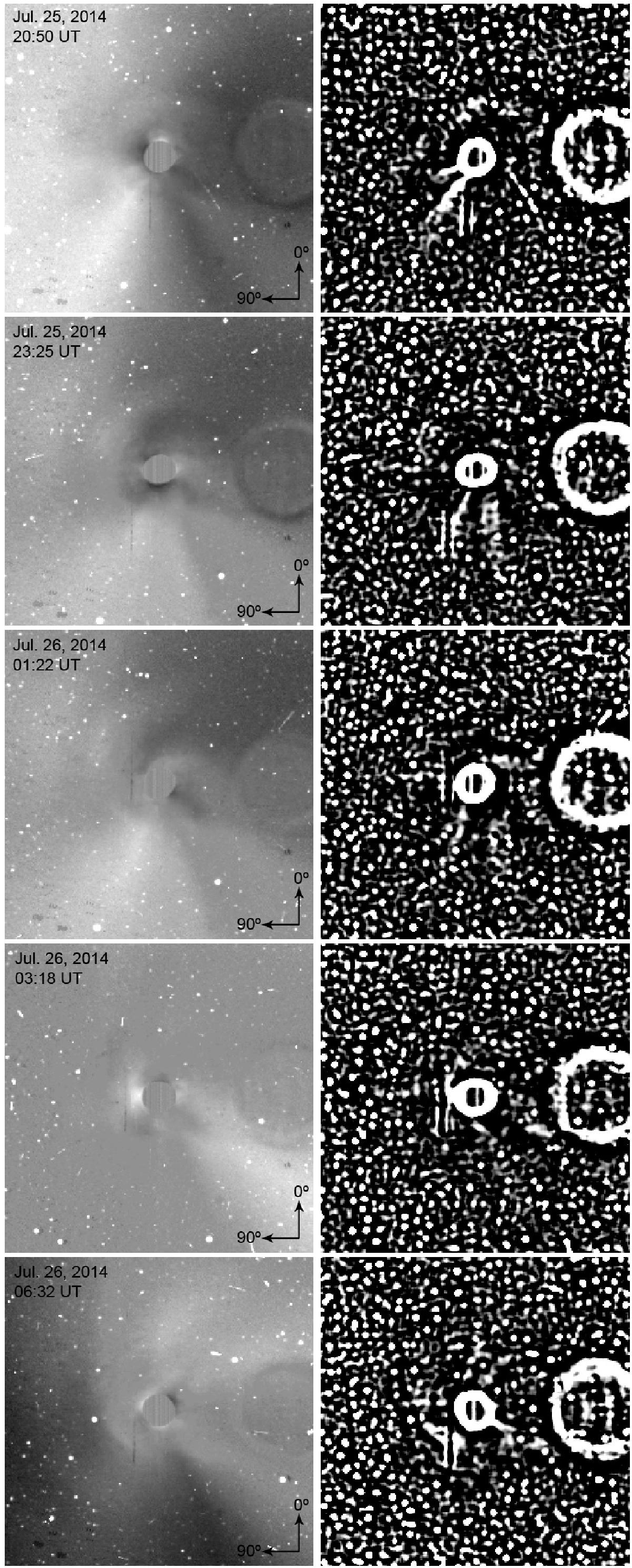

Fig. 2


Series of images of 67P acquired in the optical wavelength range (616 nm) with the OSIRIS WAC on July 25–26, 2014. The left panel shows the radially renormalized images, and the right one displays the corresponding Laplace-filtered image. Date and time of image acquisition is indicated on the frame, as well as the arrows, which indicate the angle convention for placing the detected jet-like features. The comet nucleus is at the center of the FoV, which is 73 × 73 km at the comet, and the spatial resolution is ≈ 280 m/pix. The artifact to the right of each frame is due to the ghost that is caused by overexposure of the nucleus. The look-up table is linear, white represents higher brightness intensity.
