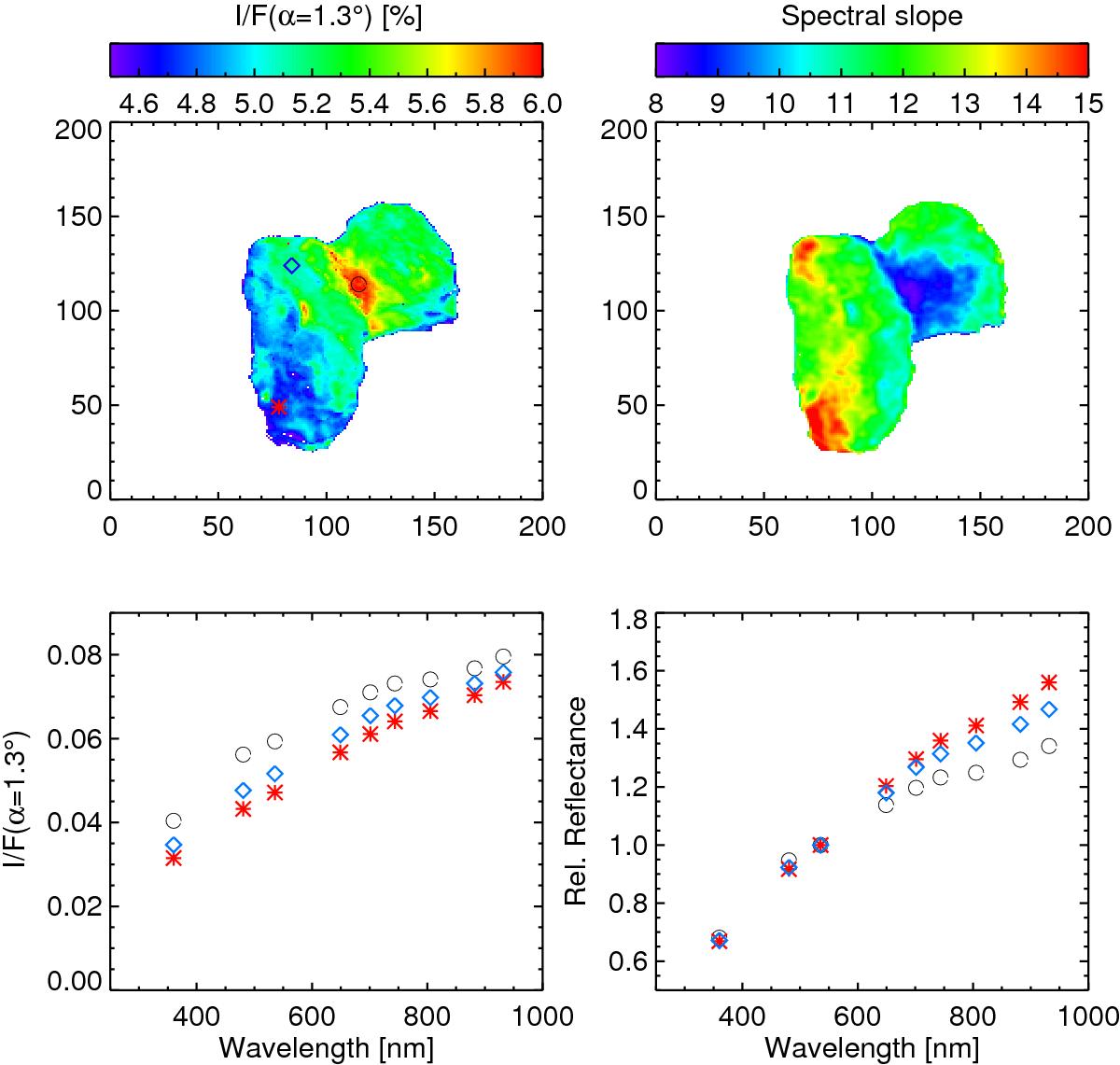

Fig. 9


I/F for the green filter centered on 535 nm, slope map, absolute and relative reflectance for some selected regions on the nucleus of 67P for the 29 July observations taken at 00:43 UT and at α = 1.3°. The slope is computed in the 535882 nm range, after normalization at 535 nm, and it is in %/(100 nm). The I/F map and the reflectance are corrected for the illumination conditions using the Lommel-Seeliger disk law.
