Fig. 4

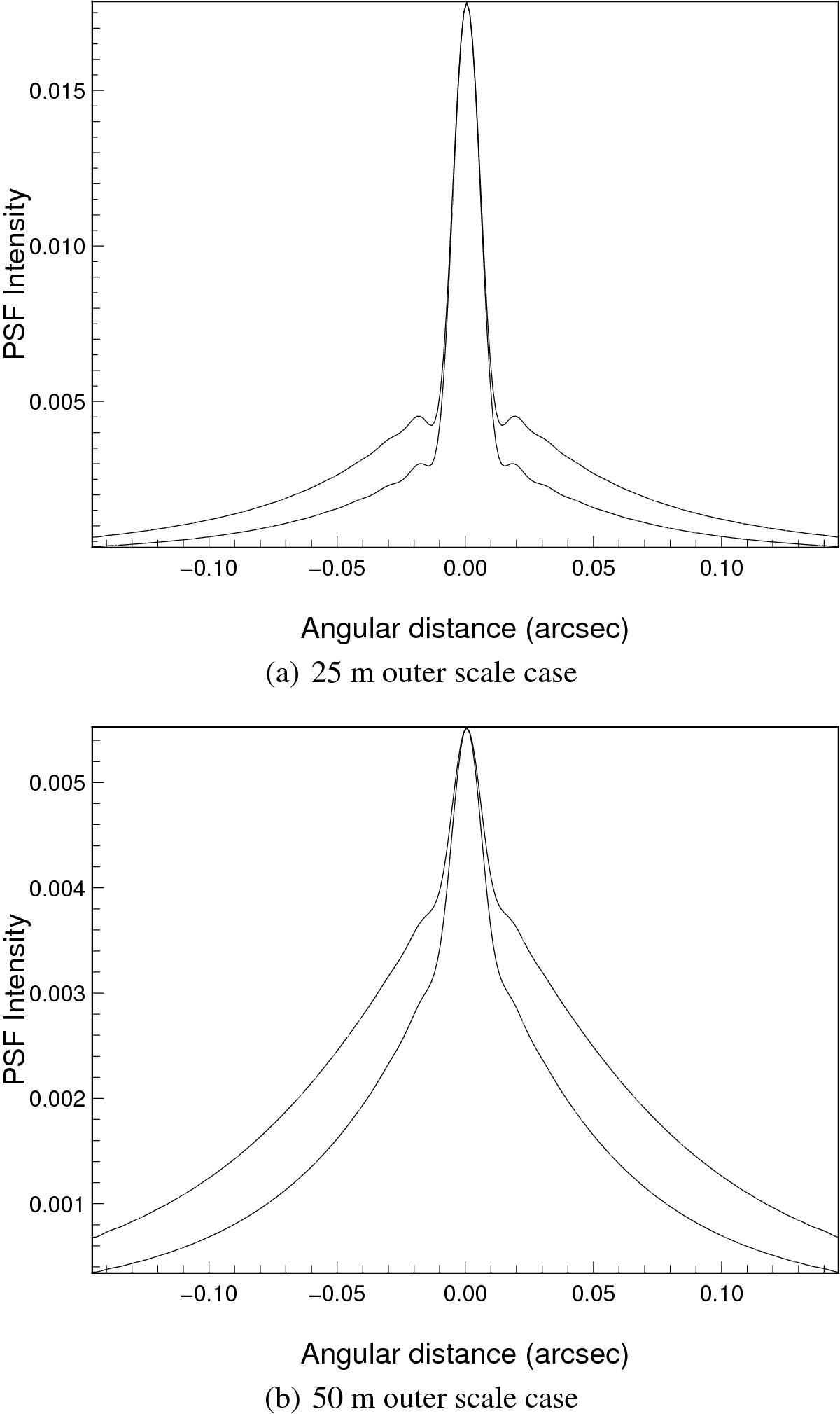

Radial and transversal cuts of the E-ELT SCAO PSF obtained with the Fourier-based simulation under median seeing conditions, 60″ off-axis distance, and L0 equal to 25 m (top) or 50 m (bottom). The PSF intensity is normalized to the PSF K-band Strehl ratio: the maximum intensity is equal to the Strehl ratio (2% and 0.6%, respectively).

This figure is made of several images, please see below:
