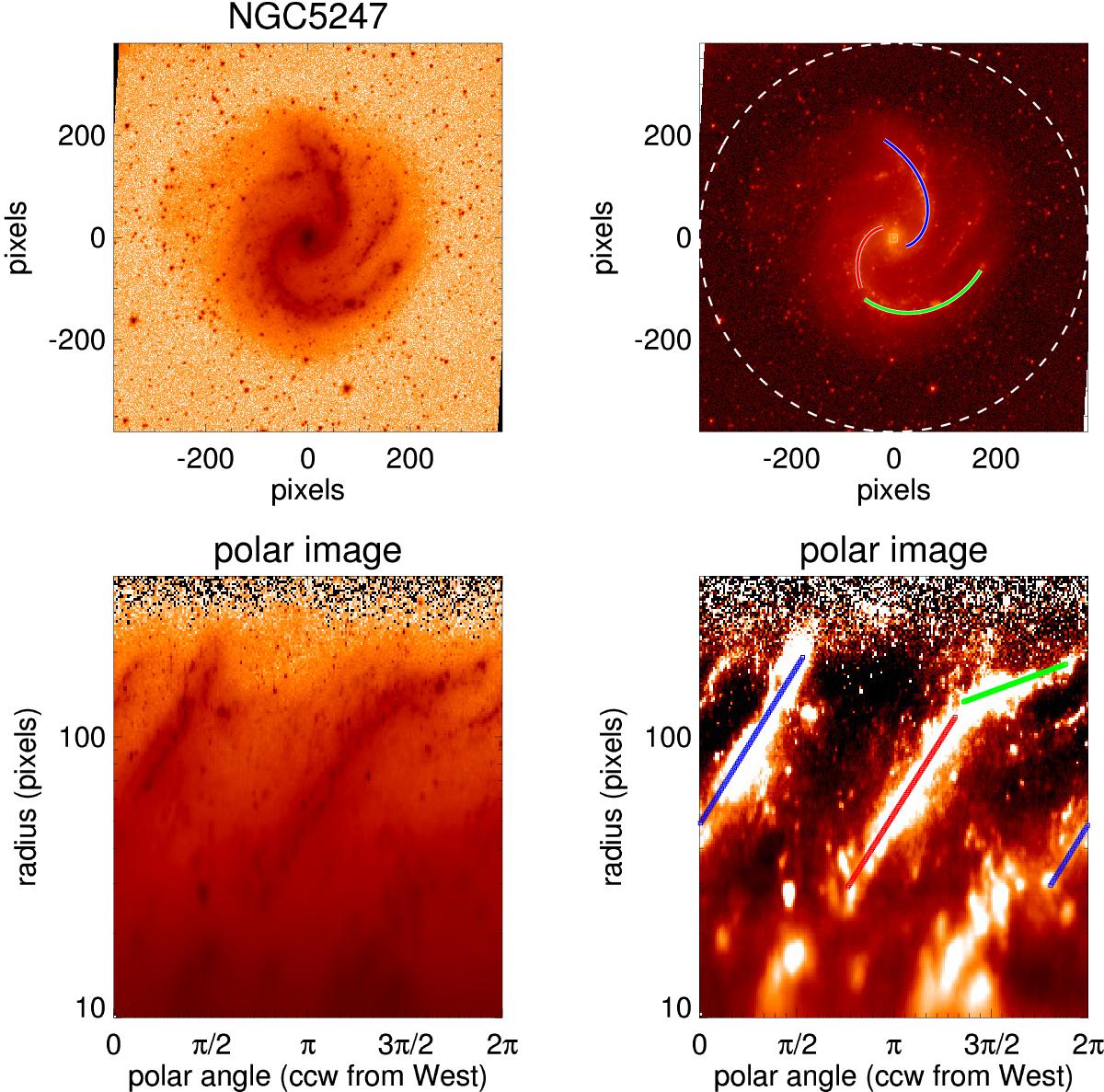

An example for NGC 5247 of our measurements of the spiral arms. The upper panels show the original 3.6 μm image. The lower left panel shows the same image in polar coordinates, and the lower right panel an unsharp mask image, also in polar coordinates. In the right panels the locations of the measured spiral arms are indicated. The different colours of the lines show the spiral arm segments that were fitted with different pitch angles.
