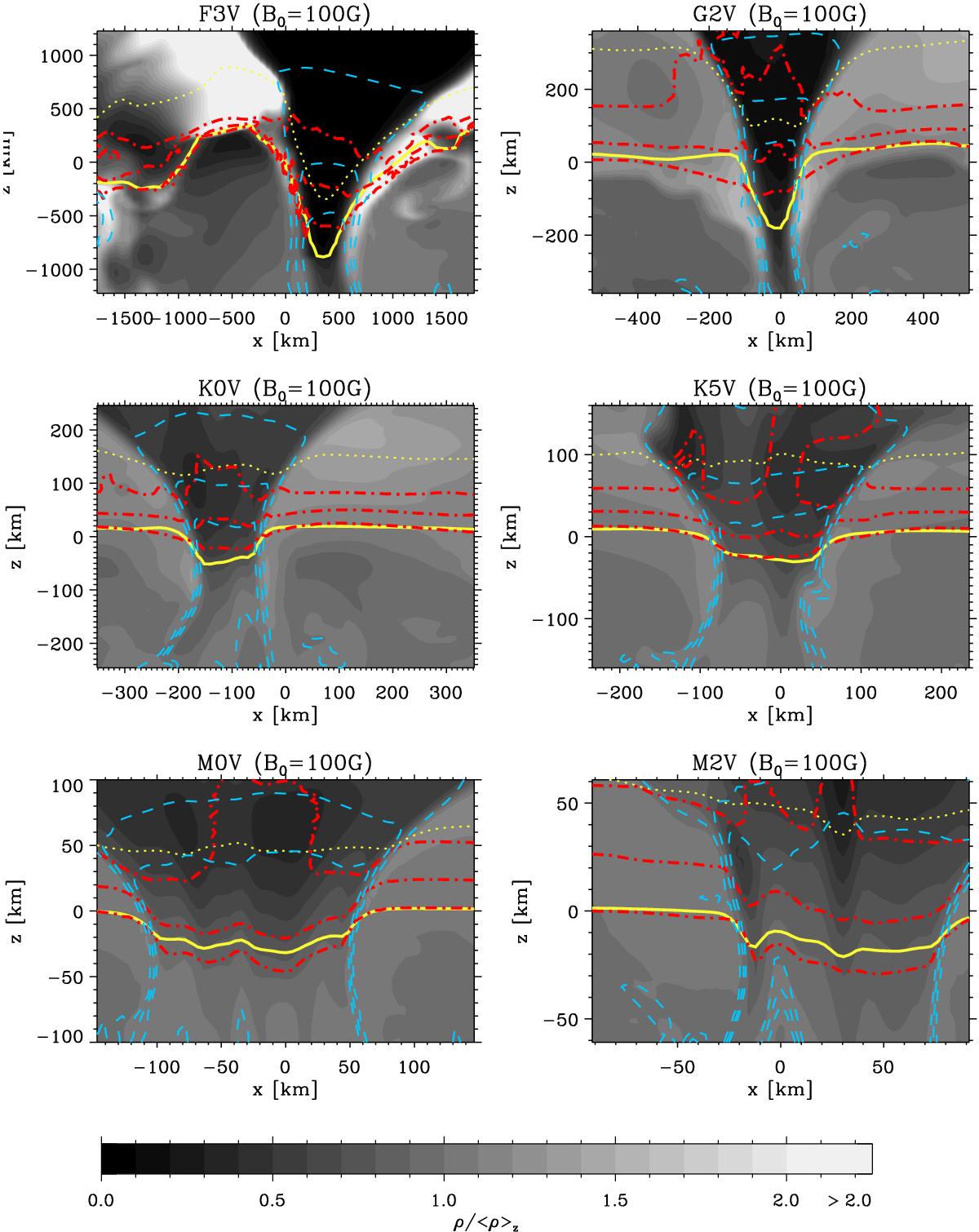

Fig. 4


Vertical cuts through typical magnetic flux concentrations in the six simulations with B0 = 100 G. The grey scale indicates the density ϱ/ ⟨ ϱz relative to the horizontal mean density; the solid (dotted) yellow curve represents the τR = 1 (τR = 0.01) surface; the dashed blue contours indicate iso-B contours of 500, 1000, and 1500 G; the red dash-dotted curves indicate the T/Teff = 0.9, 1.0, and 1.1 surfaces. x and z coordinates are to scale for each panel but differ by more than one order of magnitude for the different stellar models.

This figure is made of several images, please see below:
