Fig. 4

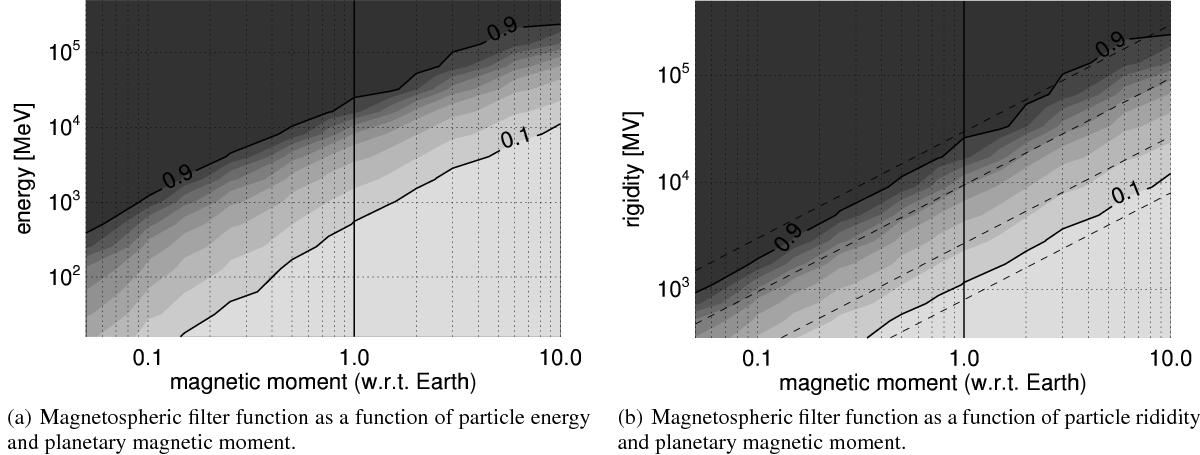

Magnetospheric filter functions η(E,ℳ) and η(R,ℳ) as a function of particle energy E (left panel) or rigidity R (right panel) and planetary magnetic moment . Thick lines: η = 0.9 and η = 0.1. Region above η = 0.9: unshielded. Region between η = 0.1 and η = 0.9: partially shielded. Region below η = 0.1: fully shielded. Dashed lines: R ∝ ℳ (see text).
