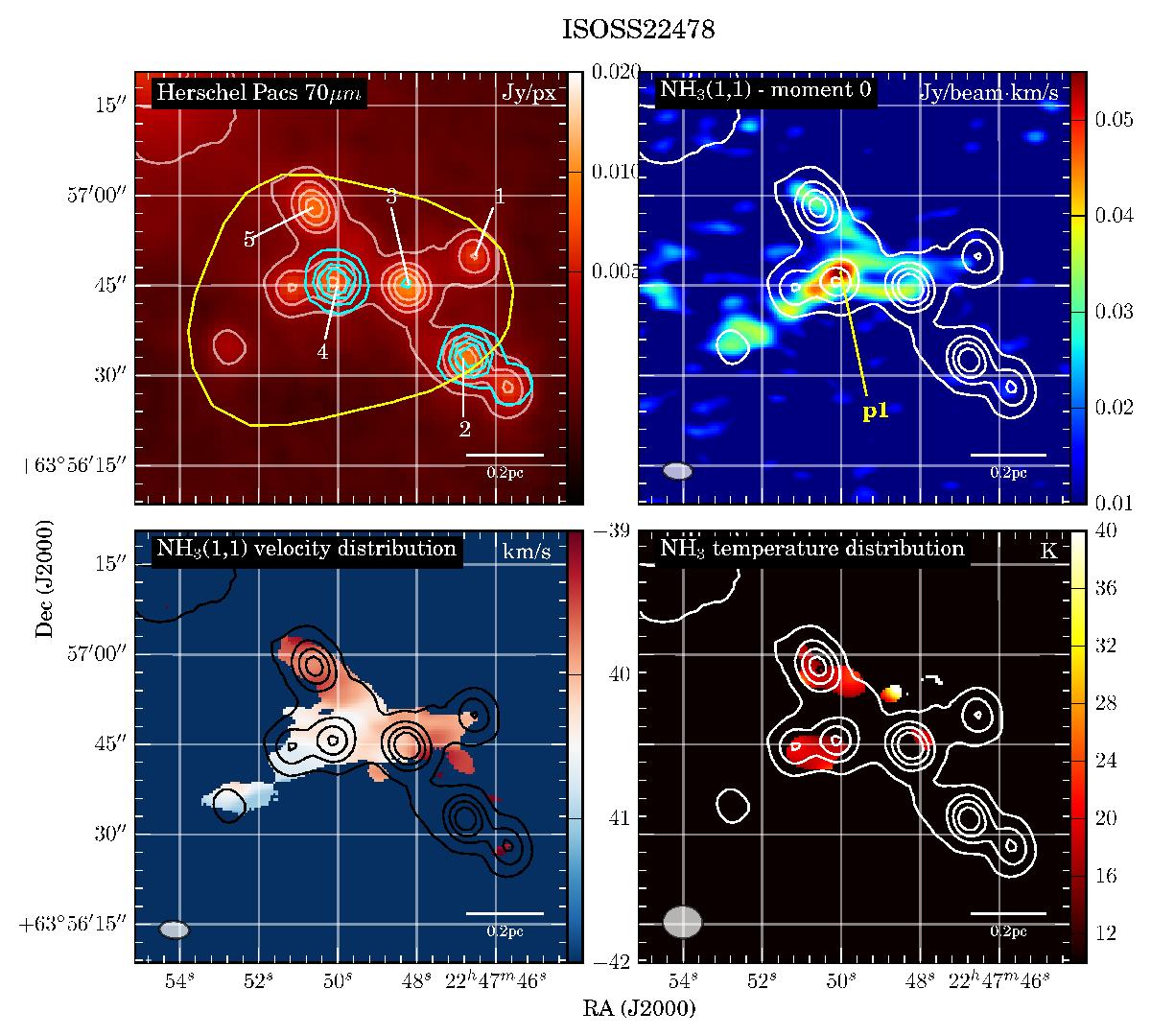

ISOSS22478 – overview. Upper left panel: Herschel PACS 70 μm emission, and cyan contours present Spitzer MIPS 24 μm emission at levels of 15, 40, 65, 90, and 115 MJy/sr. The yellow contour shows the 3-sigma limit of the SCUBA 850 μm emission and therefore the area where we measured the clump mass. The numbers are the core numbers of Table 2. Following panels: VLA and Effelsberg 100 m Telescope data combined. Upper right panel: integrated emission of the main NH₃(1, 1) line in Jy beam^-1 km s^-1 from −41.3 to −38.9 km s^-1. Lower left panel: peak velocity distribution in km s^-1. Lower right panel: kinetic temperature in K. In each panel white/black contours present Herschel PACS 70 μm emission at levels of 3, 4.5, 6, and 7.5 mJy/pixel. The NH₃(1, 1) emission peak is marked in the upper right panel, and the corresponding spectra are given in Fig. A.5. The synthesized beam and scale are shown in each panel.
